Edan IM70 Patient Monitor Interface Board 02.02.220447012 02.03.220447014 Medical Equipment Parts

Edan iM70 Patient Monitor Interface Board 02.02.220447012 02.03.220447014 Used-good Medical Equipment Parts

Used-good Edan iM70 Patient Monitor Interface Board 02.02.220447012 02.03.220447014

► Brief Introduction

Edan iM70 Patient Monitor Interface Board 02.02.220447012 02.03.220447014 is the core electronic component of Edan iM70 multi-parameter patient monitor, used to connect and manage various input and output signals of the monitor. As the interface between the host and various sensors, it is responsible for receiving, processing and transmitting data from physiological parameters such as ECG (electrocardiography), SpO₂ (blood oxygen), NIBP (non-invasive blood pressure), IBP (invasive blood pressure), TEMP (body temperature), EtCO₂ (carbon dioxide), etc. The interface board provides connections with power supply, display, alarm system, data storage device and network interface to ensure stable operation of the monitor. It is suitable for expanding modules such as EtCO₂ (end-tidal carbon dioxide), IBP (invasive blood pressure), anesthetic gas monitoring, etc. to achieve more advanced patient monitoring functions.

► Features

• High integration: The interface board integrates signal processing, power management, and data communication on a compact PCB (printed circuit board), improving the stability and durability of the device.
• Strong anti-interference ability: Using high-quality electronic components and shielding technology, it can work stably in strong electromagnetic environments (such as ICU, operating room), avoiding signal interference and causing data errors.
• Low power consumption & efficient operation: Adopt low power consumption chips to reduce heat and energy consumption, and improve the overall working efficiency and durability of the equipment.

► Precautions

• Electrostatic discharge (ESD) may damage the precision electronic components on the interface board. It is recommended to use anti-static gloves and anti-static wrist straps when operating.
• After long-term use, some ports may become loose or damaged. You should regularly check whether the interface is firm to ensure normal signal transmission.
• Electronic components are susceptible to moisture or short circuit. Ensure that the equipment environment is dry and prevent water or disinfectant from penetrating into the interface board.

► Parameters

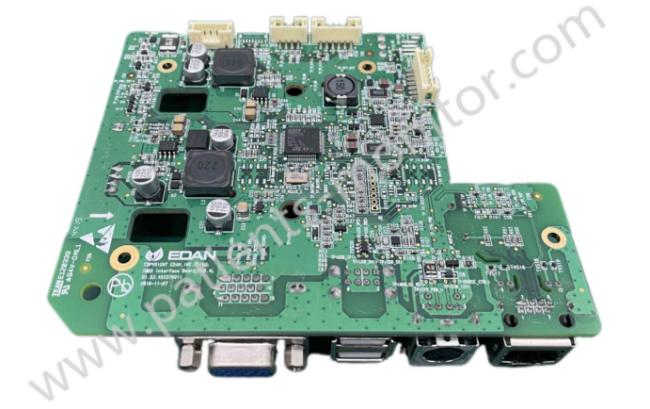

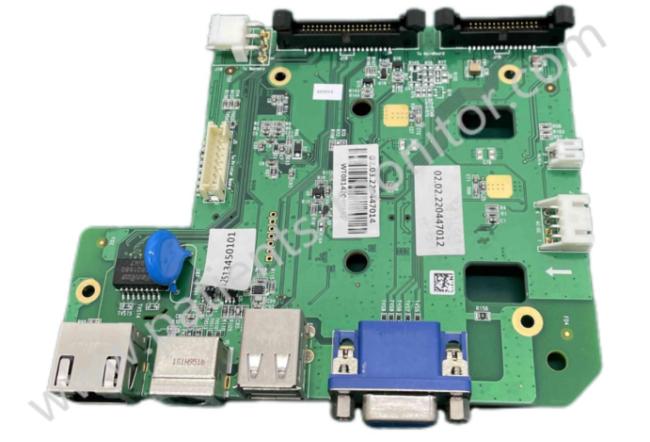

► Product Picture

If you have any question about our Used-good Edan iM70 Patient Monitor Interface Board 02.02.220447012 02.03.220447014, please feel free to contact us.

In addition, our company is mainly engaged in the sale, exchange and repair of medical equipment and medical equipment accessories. If you are also interested in other medical equipment and accessories, please feel free to contact us.

► After-sales issues

Our warranty time is 90 days after delivery. Before packing, we will check the goods model carefully, and if the product is in used condition, there are professional engineers who will test the functions of it. Only the test is qualified then we will pack carefully to ensure that you can receive satisfactory and workable goods. And please check the goods asap after you receiving them. If you have any questions, please feel free to contact us.
