Edan IM70 Patient Monitor Display Board Screen Drive Board 02.02.452293010 01.53 Medical Equipment Parts

Edan iM70 Patient Monitor Display Board Screen Drive Board 02.02.452293010 01.53 Used-good Medical Equipment Parts

Used-good Edan iM70 Patient Monitor Display Board Screen Drive Board 02.02.452293010 01.53

► Brief Introduction

The Display Board / Screen Drive Board of the Edan iM70 monitor is the core component used to control and drive the display screen. Its part number is 02.02.452293010 01.53. It controls the monitor's screen display and manages the visualization of the patient's vital signs parameters, including heart rate, blood pressure, blood oxygen saturation (SpO2), respiratory rate, etc. It drives the liquid crystal display (LCD) to adjust the screen's brightness, contrast, color display, etc. to ensure that medical staff can read the data clearly. It processes image signals and converts data from the main board or signal processing module into image signals to adapt to the display format of the LCD screen. It provides screen refresh and response to ensure real-time data updates, allowing doctors to accurately monitor patient conditions.

► Features

• Supports high-resolution display, making the values and waveform images of vital signs clearly visible.
• Low-latency screen refresh capability ensures real-time display of data.
• Compact size, can be seamlessly integrated into the iM70 monitor.
• Adopt high-quality electronic components, with good durability and anti-interference ability, suitable for long-term operation.
• It has over-current, over-heat and short-circuit protection to prevent the driver board from being damaged due to power supply problems.

► Precautions

• The driver board usually relies on a stable DC voltage for power supply, and power fluctuations may cause the screen to flicker or not display.
• The screen driver board will generate a certain amount of heat when running for a long time, so please ensure that the device is well ventilated and that no foreign objects block the heat dissipation holes of the monitor.

► Parameters

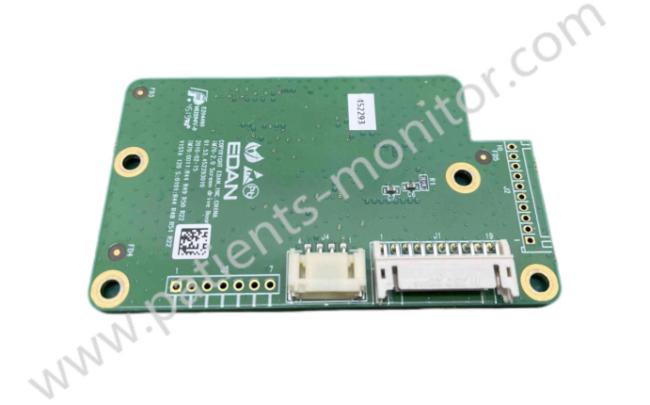

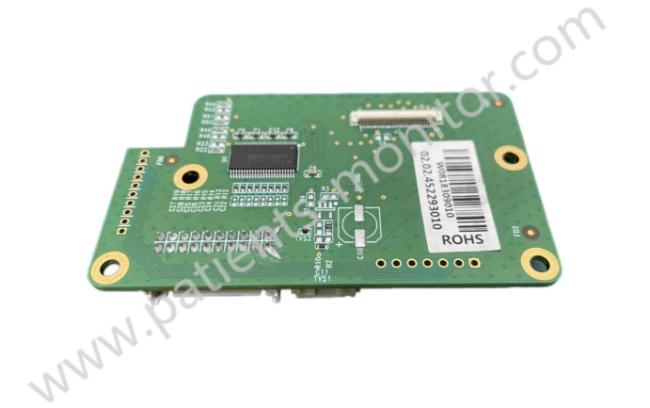

► Product Picture

If you have any question about our Used-good Edan iM70 Patient Monitor Display Board Screen Drive Board 02.02.452293010 01.53, please feel free to contact us.

In addition, our company is mainly engaged in the sale, exchange and repair of medical equipment and medical equipment accessories. If you are also interested in other medical equipment and accessories, please feel free to contact us.

► After-sales issues

Our warranty time is 90 days after delivery. Before packing, we will check the goods model carefully, and if the product is in used condition, there are professional engineers who will test the functions of it. Only the test is qualified then we will pack carefully to ensure that you can receive satisfactory and workable goods. And please check the goods asap after you receiving them. If you have any questions, please feel free to contact us.
