Philiph TC10 ECG machine Rechargeable

Li-ion Battery REF 989803185291 PN 453564402681

► CAUTION

--Do not remove the battery during patient treatment unless the device is connected to AC power, otherwise patient data may be lost. l

--Before removing and replacing the electrocardiograph battery, unplug the power cord from the main power source and press and hold the

On/Standby button (located on the front of the electrocardiograph) for at least two seconds to turn off the electrocardiograph.

--Make sure the electrocardiograph is turned off. When the electrocardiograph is completely turned off, the screen goes dark and the On/Standby

button turns off. After turning off the electrocardiograph, proceed to remove and replace the battery. l

It is normal for the battery to be warm to the touch when you remove it from the electrocardiograph, but this does not cause burns. l

--Follow the battery manufacturer's guidelines for charging and storage.

Note :

--The TC10 is powered by a single lithium-ion battery (part number: 989803185291).

--With normal use, the battery can be charged up to 90% from a flat battery in as little as four (4) hours.

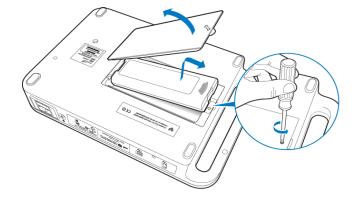

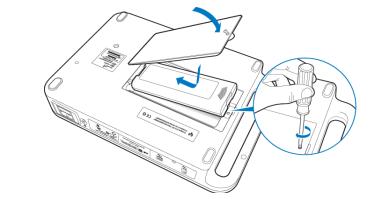

► Installing the Battery

To insert the battery:

1. Carefully place the device face down on a flat surface.

2. Use a #1 Phillips screwdriver to loosen the screws on the battery compartment cover.

3. Remove the battery cover.

4. If replacing a battery, remove the old battery from the battery compartment.

5. Insert the new battery.

6. Replace the battery cover.

7. Use a #1 Phillips screwdriver to tighten the battery cover screws.

8. Connect the power cord to the electrocardiograph. Charge the battery for five hours before operating the electrocardiograph on battery power only.

► specification of Philiph TC10 ECG machine Rechargeable Li-ion Battery REF 989803185291 PN 453564402681

►  Photo of Philiph TC10 ECG Machine Rechargeable Li-Ion Battery REF 989803185291 PN 453564402681

Below picture is the battery ,which is used for PHiliph TC10 ECG Machine .On the battery ,you will find the battery details ,such as the

manufacturer ,voltage ,capacity ,cautions etc .If you need more details ,feel free to contact us .

Thank you so much for your attention .If you're interested in Philiph TC10 ECG Machine Rechargeable Li-Ion Battery REF 989803185291 PN 453564402681,feel free to contact us .Thank you .
