PHiliph PageWriter TC10 ECG Cardiograph Machine USB And MSH Interface Kit Board 453564403401 453564403391
USB and MSH Interface Kit for PageWriter TC10
PHiliph PageWriter TC10 ECG Cardiograph Machine USB and MSH Interface Kit Board 453564403401 453564403391 Used
► Brief Description
PHiliph PageWriter TC10 ECG Cardiograph Machine USB and MSH Interface Kit is designed for this device, mainly for data transmission, device connection and system integration. First of all, ECG data can be exported, and ECG data can be quickly transferred to a computer, USB flash drive or hospital information system (HIS/EMR) through the USB interface for easy storage, analysis and sharing. It can also be connected to the hospital network, and the TC10 can be integrated into the hospital's information system through the MSH (Multi-System Hub) interface to realize automatic data flow.

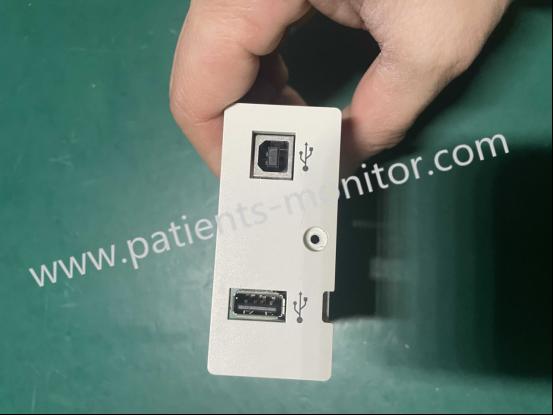

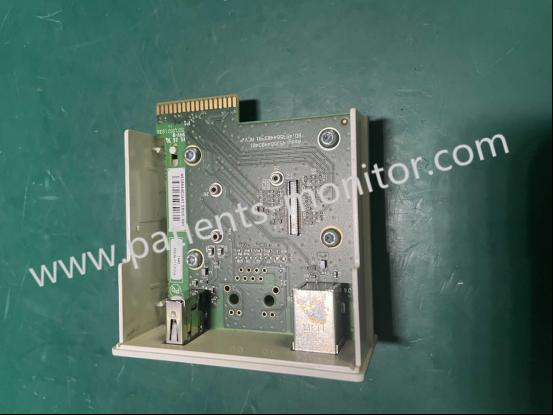

► Detailed Photos
► Functions
The main functions of the PHiliph PageWriter TC10 ECG Cardiograph Machine USB and MSH Interface Kit are as follows:
1. Data transmission
- ECG data export: Quickly transfer ECG data to a computer, USB flash drive or hospital information system (HIS/EMR) via the USB interface for easy storage, analysis and sharing.
- Remote diagnosis support: Send data to the cloud or telemedicine platform to support real-time viewing and consultation by experts.
- Report printing: Connect to a printer to directly output ECG reports.
2. System integration:
- Connect to the hospital network: Integrate TC10 into the hospital's information system through the MSH (Multi-System Hub) interface to achieve automatic data flow.
- Multi-device expansion: The MSH interface supports the connection of external devices (such as blood pressure monitors, label printers, etc.) to improve work efficiency.
3. Equipment maintenance and upgrade:
- Firmware update: Upgrade the device's software or firmware through the USB interface to ensure the latest device functions.
- Fault diagnosis: After connecting the machine, the device status can be detected through dedicated software to quickly locate the problem.
4. Data backup:
- Regularly back up patient data and device configuration via the USB interface to prevent data loss.
► About the TC10
| Device Type | 12-lead EKG |
| Display | 10.1" color touchscreen |
| Resolution | 1280 x 800 pixels |
| Weight | Approx. 2.5 kg (with battery) |
| Dimensions | Approx. 28.5 cm x 25.5 cm x 9.5 cm |
| Power supply | 100-240V AC, 50/60Hz |
| Interfaces | USB, MSH, Ethernet, Wi-Fi (optional) |
► Note
When using/installing/maintaining, be sure to turn off the power and ensure that the device is in the off state to avoid current shock. Touch the grounded metal before operation to prevent static electricity from damaging the interface circuit.
Thanks for your interest in PHiliph PageWriter TC10 ECG Cardiograph Machine USB and MSH Interface Kit Board 453564403401 453564403391 Used, please feel free to contact me. Thank you for your time and wish you have a happy life.
