Comen C26 Fetal Monitor Mainboard CMBKGCB 00037 Main Board Assembly Used Spare Parts For Hospital Device
Mainboard for Comen C26 C20
Comen C26 Fetal Monitor Mainboard CMBKGCB 00037 Main Board Assembly Used Spare Parts for Hospital Device
► Brief Description
Comen C26 Fetal Monitor Mainboard CMBKGCB 00037 Assembly - It is the core component of the entire monitor, using a high-performance microprocessor or microcontroller with powerful data processing capabilities and real-time response capabilities. It can quickly process and analyze signals from various sensors to ensure that the monitor can accurately and in real time display the physiological parameters of the fetus and mother.

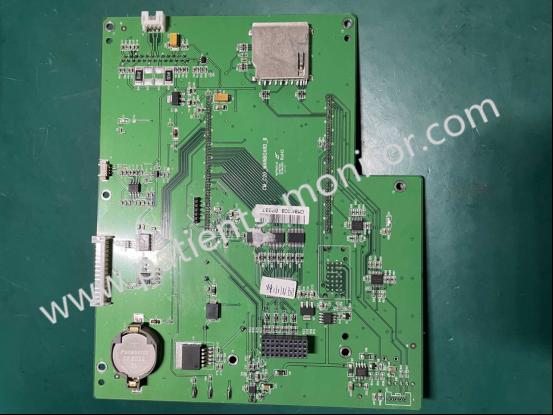

► Detailed Photos
► Features
Comen C26 Fetal Monitor Mainboard CMBKGCB 00037 Assembly has the following features:
- 1. Data acquisition and processing: coordinate the data acquisition work of each sensor
- 2. System control: responsible for the system control of the entire monitor, including starting and initializing each module, setting working parameters, controlling the refresh of the display interface and operation response, etc.
- 3. Alarm processing: according to the preset alarm thresholds and rules, the collected data is monitored and judged in real time. When the physiological parameters of the fetus or mother exceed the normal range, the alarm signal is triggered in time, and the external speaker is controlled by the mainboard to sound an alarm, etc.
- 4. Display driver: convert the processed data into a format suitable for display, and drive the monitor's display screen to display the physiological parameters, waveforms and other information of the fetus and mother.
► More Details
Although it is a simple circuit board, it has a complex structure. Contains flash memory for storing system software, configuration information, and collected physiological data, etc., providing temporary storage space for system operation and data processing, and ensuring the smoothness of data processing and system operation.
There are also RS-232, RS-485, USB, Ethernet and other interfaces to achieve connection with external devices such as fetal heart probes, uterine contraction pressure sensors, and mother's ECG, as well as communication with obstetric central monitoring stations or other medical equipment, facilitating data transmission and sharing.
► Comen C26 Test Parametes
| Fetal heart rate: | Ultrasonic working frequency | 1MHz |
| Ultrasonic beam intensity | Iob <5mW/cm² | |
| Measuring range | 30～250bpm | |
| Accuracy | ±1bpm | |
| Uterine contraction pressure: | measurement range 0 to 100 units | |
| NIBP: | Measurement range | 10mmHg～270mmHg |
| Accuracy | ±5mmHg | |
| Spo2: | Measurement range | 0%~100% |
| Resolution | 1% | |
| Pulse Rate Measurement Range | 20bpm~254bpm | |
| Respiration: | Adult measurement range | 6~120bpm |
| Children/Newborn | 6~150bpm | |
| Accuracy | ±1bpm | |
| Body temperature: | Measurement range | 0～50℃ |
| Accuracy | ±0.1℃ | |
Thanks for your interest in Comen C26 Fetal Monitor Mainboard CMBKGCB 00037 Main Board Assembly Used Spare Parts for Hospital Device, please feel free to contact me. Thank you for your time and wish you have a happy life.
