GE Dash1800 Patient Monitor DC2DC Power Supply Board AAMBL1 2023160-001 2023698-001

GE Dash1800 Patient Monitor DC2DC Board

AAMBL1 2023160-001 2023698-001

►About GE Dash1800 Patient Monitor DC2DC Board AAMBL1 2023160-001 2023698-001

GE Dash1800 Patient Monitor DC2DC Board AAMBL1 2023160-001 2023698-001

is a power management module that converts the input DC voltage into the voltage required by various parts of the device. In the monitor, the

power board (including the DC-DC converter) is a core component, and if it breaks down, booting problems, battery problems, etc. may occur.

►The Function of GE Dash1800 Patient Monitor DC2DC Board AAMBL1 2023160-001 2023698-001

1. Voltage Conversion and Adaptation

It converts external input power (such as DC output from an AC adapter or battery) into stable voltage levels required by the various modules

within the monitor, including adaptive DC power supply to signal amplifiers, microprocessors, sensors, etc. It ensures voltage isolation between

high- and low-voltage modules (such as display driver circuits and sensor circuits) to prevent signal interference.

2. Stable Power Supply

Voltage stabilization and filtering eliminate the effects of power supply fluctuations on sensitive circuits (such as ECG signal amplifiers and blood

oxygen sensors) to ensure the accuracy of monitored data. Battery mode optimizes power usage to extend your device's operating time.

3. Protection and Isolation Functions

Isolates the external power supply from the internal circuit, preventing damage to key components (such as microprocessors and sensors) due to

fluctuations and surges. Some designs may integrate overvoltage/undervoltage protection mechanisms to improve device safety.

4. Supports Multi-Module Collaboration.

Provides independent power supplies for different functional modules (ECG, SpO₂, NIBP, etc.) to ensure

synchronized acquisition and processing of different monitoring parameters. Reduces the risk of data distortion caused by power interference

between modules.

► Specification of GE Dash1800 Patient Monitor DC2DC Board AAMBL1 2023160-001 2023698-001

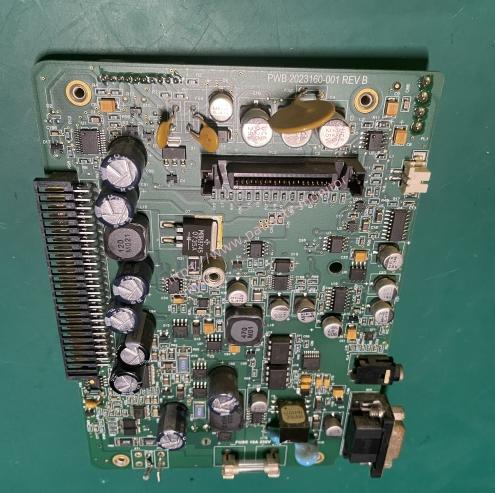

►  Photo of GE Dash1800 Patient Monitor DC2DC Power Supply Board AAMBL1 2023160-001 2023698-001

► FAQ:

1.Can I pick up my goods at my door?

We are a shipping warehouse and do not provide door-to-door pickup service. All goods are picked up by the logistics company.

2.Can I specify a courier for delivery?

Specific delivery personnel cannot be specified; delivery will be automatically assigned by the local network system.

3.Can I get a partial refund for damaged goods?

Partial refunds, free replacement parts, or replacement with brand new goods can be negotiated depending on the extent of damage.

4.Will I purchase insurance for replacement goods?

For high-value replacement goods, we will continue to ensure proper packaging and insurance arrangements to guarantee safety.

5.Is the delivery time for replacement goods the same as the original order?

Replacement orders are shipped with the same priority, and the delivery time is consistent with regular orders.

Thank you so much for your attention .If you're interested in GE Dash1800 Patient Monitor DC2DC Power Supply Board AAMBL1 2023160-001 2023698-001 ,feel free to contact us .Thank you .
