LCD Inverter Board AC-1386D For GE Dash400 Patient Monitor Parts

LCD Inverter Board AC-1386D for GE Dash400 Patient Monitor Used-good Medical Equipment Parts

Used-good GE Dash400 LCD Inverter Board AC-1386D

► Brief Introduction

LCD Inverter Board AC-1386D is a LCD backlight driver board (high-voltage inverter board) specifically used in the GE Dash 400 patient monitor. It is used to provide the required backlight power for the LCD screen so that the screen can display images normally. It powers the cold cathode fluorescent lamp (CCFL) or LED backlight in the LCD screen, making the screen bright and visible. The function of this board is to convert low-voltage DC (such as 5V/12V) into high-voltage AC (about 600V-1000V) to drive the LCD backlight tube; control the screen brightness (some models support dimming function); ensure that the LCD screen has a uniform and stable brightness display during operation; without this board, the monitor's LCD screen will not light up or display very dark, even if the internal system is running normally.

► Features

• Small and thin structure: suitable for embedding inside the device, saving space and easy to replace.
• High voltage output but low power input: input is 5V or 12V, output is the high voltage AC required to drive the backlight.
• Backlight control signal interface: can receive the motherboard dimming signal to achieve brightness adjustment or standby screen off control.
• Multiple protection design: including overvoltage protection, short circuit protection, over-temperature protection, etc., to improve safety.

► Precautions

• Avoid liquid contact: once the backlight board is exposed to liquid, it is very easy to short-circuit and burn, so it must be avoided from contact with cleaning fluid and condensation
• Pay attention to changes in screen brightness: if the screen is dim or flickering, it may be due to aging of the inverter or poor contact, and it should be checked and replaced as soon as possible.

► Parameters

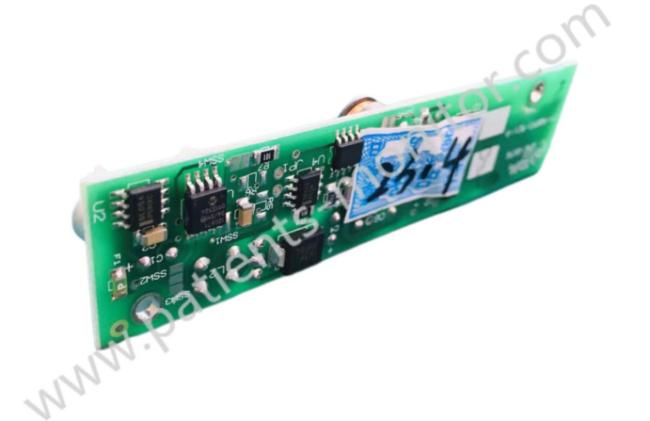

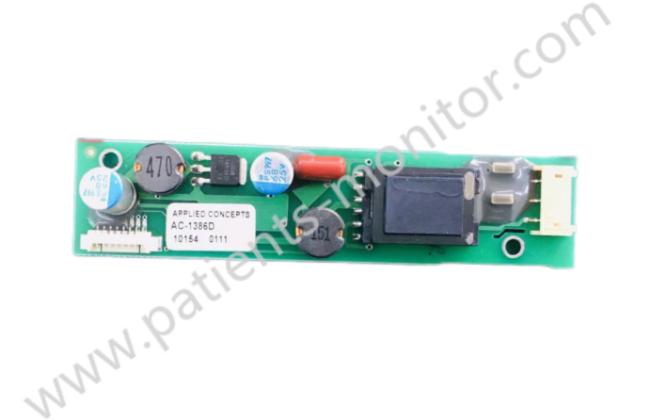

► Product Picture

If you have any question about our Used-good GE Dash400 LCD Inverter Board AC-1386D, please feel free to contact us.

In addition, our company is mainly engaged in the sale, exchange and repair of medical equipment and medical equipment accessories. If you are also interested in other medical equipment and accessories, please feel free to contact us.

► After-sales issues

Our warranty time is 90 days after delivery. Before packing, we will check the goods model carefully, and if the product is in used condition, there are professional engineers who will test the functions of it. Only the test is qualified then we will pack carefully to ensure that you can receive satisfactory and workable goods. And please check the goods asap after you receiving them. If you have any questions, please feel free to contact us.
