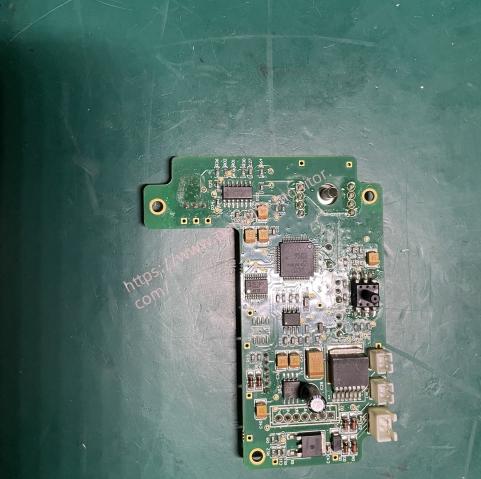

Philip Goldway UT4000B Patient Monitor NIBP Board C-NIBP312B Without Pump And Solenoid Valve

Philip Goldway UT4000B Patient Monitor

NIBP Board C-NIBP312B Without Pump and Solenoid Valve

► Brief Introduction of Philip Goldway UT4000B Patient Monitor NIBP Board C-NIBP312B Without Pump and Solenoid Valve

PHiliph Goldway UT4000B Patient Monitor NIBP Board C-NIBP312B is a specific component that is used in conjunction with the monitor to

measure a patient's blood pressure non-invasively.

► Functions and main components of Philip Goldway UT4000B Patient Monitor NIBP Board C-NIBP312B

Sensor: Blood pressure circuit board usually integrates a sensor module that can measure the patient's blood pressure (including systolic and diastolic blood pressure) in real time. This sensor can be a pneumatic pressure sensor or a piezoelectric sensor.

Amplifier circuit: In order to increase the signal accuracy, the blood pressure signal is usually amplified by an amplifier circuit for subsequent digital processing.

Analog-to-digital converter (ADC): The amplified analog signal must be converted into a digital signal through an analog-to-digital converter, which can be processed and displayed by the main control system of the monitor.

Microcontroller (MCU): The microcontroller is responsible for scheduling the work of each module, processing the received digital signals, and performing the corresponding tasks such as calculating the average blood pressure and other related physiological indicators.

Display interface: The processed blood pressure values ​​are displayed on the monitor screen through a display interface so that the medical staff can view them.

Communication interface: The printed circuit board may also include interfaces for communicating with other devices (e.g., data recording equipment or hospital information systems) to ensure uploading and storage of patient data.

► Maintenance and Troubleshooting

When using the UT4000B monitor, if the blood pressure measurement results are inaccurate or the display does not appear, you may need to check the following:

Connection cable: Check whether the connection cable between the blood pressure measurement probe and the circuit board is loose or damaged.

Sensor failure: You can replace or test the circuit to see if the sensor is working properly.

Power problem: Check whether the device is receiving normal power and all power modules are working properly.

Software calibration: In some cases, you may need to perform software calibration of the device to ensure the accuracy of the measurement data.

► Specification of Philip Goldway UT4000B Patient Monitor NIBP Board C-NIBP312B

Thank you for your attention .If you're interested in Philip Goldway UT4000B Patient Monitor NIBP Board C-NIBP312B Without Pump And Solenoid Valve ,feel free to contact us .Thank you.
