■ Product Describe
Edan F6 Fetal Monitor Power Supply Board is a power board with model number 21.53.112195012. Its main function is to supply power to the Fetal Monitor, providing stable and safe power to the device. It is also responsible for managing power distribution and circuit protection. It is an indispensable and important component of the Fetal Monitor device. The power board can directly affect the stability and life of the Fetal Monitor device. Even if the power board affects the data collection during the use of the device, it may even affect the lives of pregnant women and fetuses.

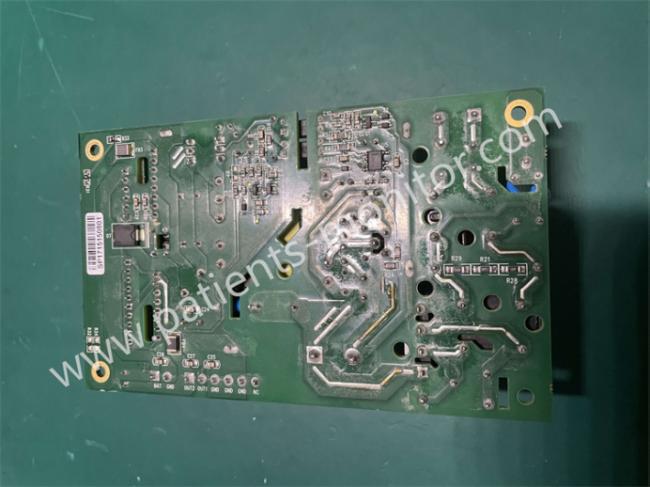

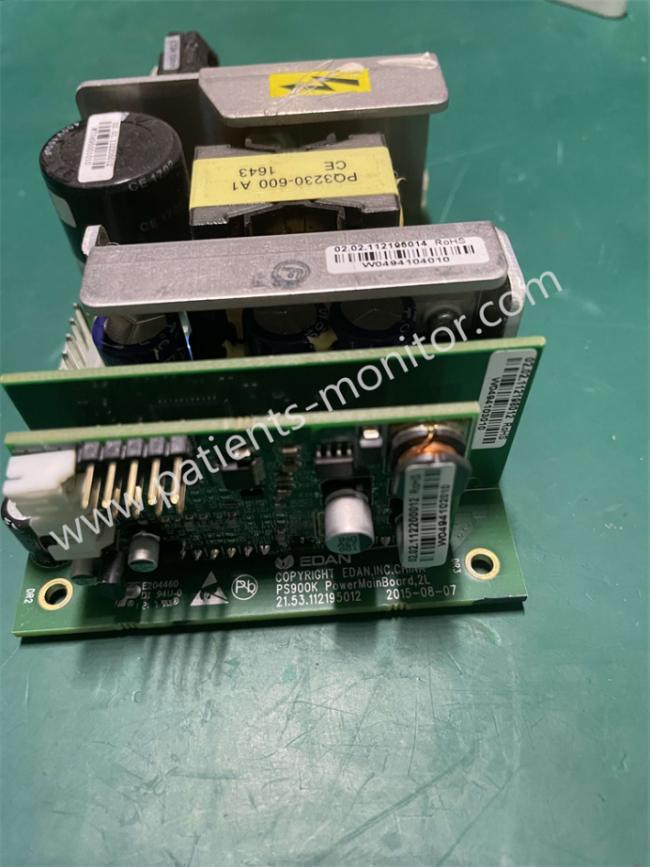

■ Product Pictures
■ Functions
(1) Power conversion and distribution
Input power adapter: Convert external AC power (AC 100-240V) into low-voltage DC power (such as DC 12V/5V) required by the device.
Multi-channel output: Allocate specific voltages and currents to different modules (such as display screens, sensors, and data processing units).
(2) Circuit protection and stability
Over voltage/over current protection: Prevent voltage fluctuations or short circuits from damaging the device.
Filtering and voltage stabilization: Eliminate electromagnetic interference (EMI) and ensure the accuracy of signal acquisition, which is very important for clinical data collection and diagnosis.
(3) Power management
Battery charging control: Manage the charging and discharging of the built-in battery (if the device supports mobile use).
Low power mode: Reduce energy consumption in standby or idle state.
■ Products Parameters
| Item | Parameter Description |
| Input voltage | AC 100-240V, 50/60Hz |
| Output voltage | DC 12V, 5V, 3.3V (multi-channel output) |
| Output power | 50-100W (depending on the load requirements of the device) |
| Size | Approximately 15cm x 10cm (depending on the internal design of the device) |
| Protection mechanism | Over voltage,over current,over heating protection |
| Interface type | Onboard slot/cable connection (connected to the motherboard and display) |
■ Problems and maintenance
(1) Some common problems with power boards:
1. When the device cannot be turned on or suddenly loses power
2. The screen displays abnormally during use, flickering or screen distortion occurs.
3. The battery cannot be charged or the battery life suddenly becomes problematic
When the above problems occur, please first check the power board.
(2) Daily maintenance suggestions:
1. Clean the dust on the circuit board regularly to prevent dust from affecting the heat dissipation of the power board and affecting the use of the device.
2. Pay attention to moisture and shock during daily use of the device: Avoid exposing the device to moisture or severe vibration environments, which will affect the service life of the device.
For the safety of your device and the service life of the device, please pay attention to the daily maintenance of the power board.
