■ Product Describe
The SCHILLER AT-101 ECG Machine Printer is a printer designed for medical environments. It is durable and ensures long-term stable operation. The compatible machine is the SCHILLER AT-101 ECG Machine, model 98.30.000.002-00. It is an important part of the SCHILLER medical equipment system.
The SCHILLER AT-101 ECG Machine Printer uses thermal printing technology and is used with corresponding thermal paper. It prints quickly and clearly, and can preserve the printed text for a long time at the appropriate storage temperature. The printing device has the characteristics of low noise during operation and is suitable for use in medical environments such as wards, ICUs, and operating rooms.
SCHILLER AT-101 ECG Machine Printer receives the patient's ECG data collected by the host, analyzes the data, and outputs the data as a waveform. Some tiny fluctuations can also be printed accurately, and the printing is fast and clear, providing medical staff with very reliable paper reports. It is an important auxiliary equipment for clinical diagnosis.
This accessory is easy to maintain, and the modular design can simplify the maintenance process and save costs.
SCHILLER AT-101 ECG Machine Printer can be used in some common medical scenarios
1. Hospital physical examination center or cardiology/surgery: when doing routine ECG examinations.
2. Hospital emergency: quickly print ECG reports for emergency patients.
3. Clinics: heart examinations in basic medical facilities
4. Mobile medical units: used in conjunction with portable ECG examination equipment

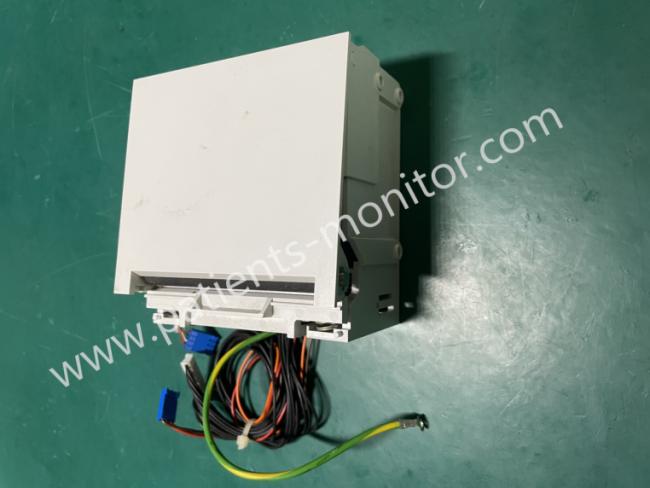

■ Product Picture
■ Functions
1. Output patient ECG data: Print the monitored patient data into a waveform chart report for clinical diagnosis by medical staff.
2. Generate diagnostic report: Not only can the data be converted into a waveform chart for printing, but also a diagnostic report can be automatically generated based on the waveform chart.
3. Record patient data: Automatically print and record key information such as patient basic information, examination date and time when printing.
4. Archive medical data: Provide paper documents for medical records and automatically store monitoring data.
■ Products Parameters
| Brand | Schiller |
| Adaption Machine | AT-101 |
| Printer | High-resolution thermal head printer, 8 dots/mm (amplitude axis), 40 dots/mm (time axis) @ 25 mm/s |
| Frequency range | 0.05 ... 150 Hz (IEC/AHA) |
| Chart paper | Thermo-reactive, Z-folded, 72 mm wide |
| Chart print-out speed | 5/10/25/50 mm/s (manual print) |
| Sensitivities | 5/10/20 mm/ms, either automatically adjusted or manually selected |
| Recording track | 3-channel presentation, optimal positioning on a width of 72 mm, automatic baseline adjustment |
| Operating temperature | 10 ... 40 °C |
| Relative humidity | 25 ... 95 % (no condensation) |
■ Use and Maintenance
How to use SCHILLER AT-101 ECG Machine Printer?
1. Collect patient ECG data on SCHILLER AT-101 ECG Machine
2. Connect to the printer through SCHILLER AT-101 ECG Machine
3. Select the content to be printed, such as patient data, waveform, time and other key information
4. Start printing, and the printer will automatically print the data.
Daily Maintenance
1. Clean and check the print head regularly
2. Avoid disinfectant entering the printer
3. Use original thermal paper for printing
4. Check the printer connection cable regularly to see if it is intact
