Mindray UMEC12 Patient Monitor Mainboard 050-002003-01 051-002497-00 MotherBother for Medical Equipment

Mindray UMEC12 Patient Monitor Mainboard 050-002003-01 051-002497-00 MotherBother for Medical Equipment

■ Product Describe

Mindray UMEC12 Patient Monitor Mainboard is one of the main accessories of Mindray UMEC12 Patient Monitor. It includes the main processing board and the power interface board. It is not only responsible for processing the core data monitored by the device (such as ECG, SpO₂, NIBP and other parameter calculations) and system operation control, but also indirectly controls power distribution and battery management, which is equivalent to the brain of the device. The working principle of the mainboard is as follows: the patient's physiological signals (blood oxygen finger clip, blood pressure cuff, lead wire, etc.) collected by different sensors are transmitted to the mainboard. The analog-to-digital converter on the mainboard converts these signals into digital signals, runs algorithms to convert these signals into vital sign values, and displays the values ​​on the screen in real time for medical staff to view the vital signs of the monitored person. These data can also be stored in the device's internal storage or transmitted to the outside through an external interface.

It can adapt to the use needs of various medical scenarios, such as mobile monitoring such as ambulance transfer of patients, mobile patients in the hospital; emergency rescue in harsh environments such as disaster sites and outdoor first aid; low-cost monitoring places that require long-term monitoring in grassroots hospital wards and community clinics. The application range is very wide. If you need it, please contact us CWT Technology HK Limited.

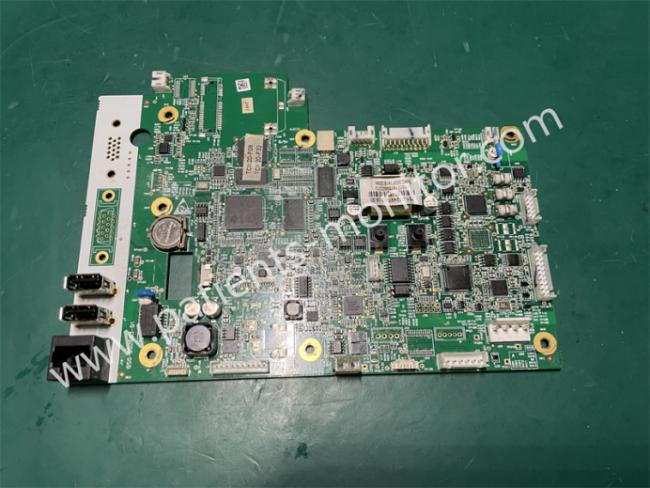

■ Product Picture

■ Functions

1. Support multi-parameter algorithm operation, powerful algorithm, such as ECG, SpO₂, NIBP, breathing, etc.

2. System control: support equipment hardware upgrade and system diagnosis, such as screen driver, alarm management, data storage

3. Power distribution and battery management: charge and discharge control, low battery alarm

4. Peripheral interface data transmission: transfer data to USB to transfer data or transfer to printer for printing, etc.

■ Products Parameters

■ Product advantages

1. Reliability

Using industrial-grade electronic components, it is safe and durable, and can adapt to the working environment where portable monitors are frequently moved and vibrated, such as transferring patients, ambulances, etc.

2. Modular design

The mainboard and each sensor module are independent, which is convenient for maintenance and upgrades

3. Low power consumption

The power management is upgraded, the efficiency is higher, and the battery life can also be improved.

4. Compatibility

In addition to basic parameters (ECG, SPO2, breathing, etc.), it also supports multi-parameter expansion modules (such as CO₂, IBP)

■ Troubleshooting Tips
