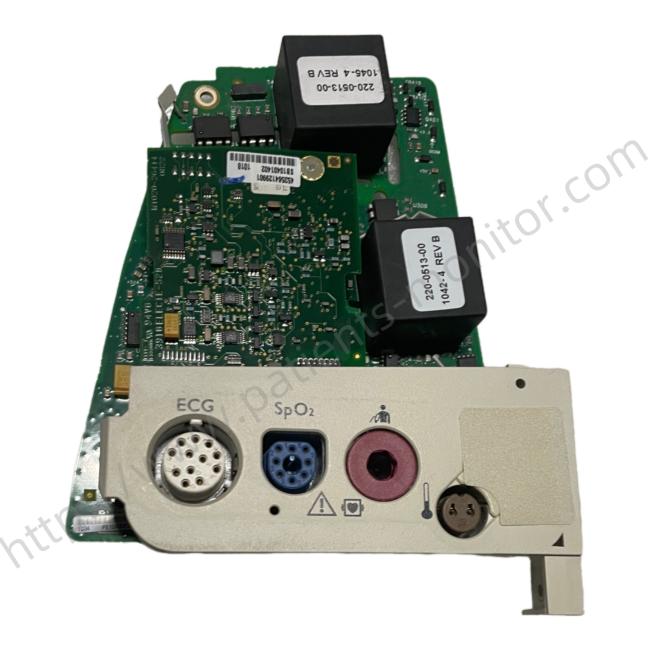

PHiliph VM8 Patient Monitor Parameter Board M1020-26414 Panel Assembly Parts 453564010711 453564129901

PHiliph VM8 Patient Monitor Parameter Board M1020-26414 Panel Assembly Parts 453564010711 453564129901

Description

The monitor parameter circuit board is one of the core components of the medical monitor, which is mainly responsible for collecting, processing, transmitting and displaying the patient's physiological parameter signals. Physiological signals (such as weak ECG signals) need to be amplified and analog-to-digital converted (ADC) before they can be recognized by the processor. The circuit boards with different functions work together to ensure that the monitor can monitor the patient's vital signs in real time and accurately.

Parameter:

- ECG: Captures weak electrical signals generated by cardiac electrical activity through body surface electrodes (usually 3/5/12 leads).

- SpO2: Red light (660nm) and infrared light (940nm) pass through fingers/earlobes and other parts, and photodiodes detect the intensity of transmitted/reflected light. Oxygenated hemoglobin (HbO₂) and reduced hemoglobin (Hb) have different absorption rates for light of different wavelengths, and SpO2 is calculated by the ratio.

- NIBP: The cuff is pressurized to block arterial blood flow, and the pressure oscillation wave is detected when it is slowly deflated. The maximum oscillation amplitude corresponds to the mean arterial pressure (MAP), and then the systolic blood pressure (SBP) and diastolic blood pressure (DBP) are calculated.

- Temp: The resistance value of the thermistor changes with temperature.

Warranty

Warranty period: 90 days

We provide warranty for both new and used equipment. Different equipment has different warranty periods. You can contact us to check the warranty details.

Delivery Details

Express delivery method: DHL, FedEx, UPS, etc.

Once payment is completed, we will immediately deliver the product to you quickly and safely. And the delivery date is about 3-5 working days, the shipping cost depends on your country and region.

If your delivery date is longer than expected, or you want to know the shipping details, you can contact us at any time.

Quality

Whether it is new equipment or old equipment, our engineers will conduct a comprehensive inspection before arranging delivery, and we have a 3 month warranty period, so you can purchase with confidence.

Warning

1. It's must use the correct electrical outlet to avoid damage or malfunction.

2. Try to avoid long-term storage, especially in high temperature and high humidity environments.

3. Do not use high-temperature, high-pressure vapour or ionizing radiation as disinfection methods.

4. Do not use chloric disinfectant such as chloride, sodium hypochlorite etc.

5. Please keep it away from water and fire.

FAQ:

1.What is the minimum order quantity for accessories?

All our medical accessories support orders starting from 1 piece. There are no high minimum order thresholds. Whether it's for small-scale replenishment, small-batch trials, or sporadic purchases by institutions, orders can be placed flexibly, fully adapting to various small-order needs.

2.Can I place and ship small, scattered orders normally?

Yes, we do not set restrictions on small orders. Even if you only purchase a single accessory, we will accept the order and arrange shipment normally without charging an additional small service fee.

3.Do less common or special models of accessories also support orders starting from 1 piece?

Yes, even niche, specialized, and scarce medical accessories follow the same 1-piece minimum order policy. There is no need to combine orders or buy other models to place an order.

4.Will the minimum order quantity for cross-border orders be increased?

No, cross-border export orders also maintain the 1-piece minimum order standard. The procurement threshold will not be increased due to international logistics or customs clearance procedures.

5.Are there any separate minimum order requirements for disposable medical consumables?

There are no special minimum order restrictions for disposable consumables; single items and small quantities can be purchased to meet the needs of hospitals for emergency replenishment, sample testing, and routine requisitions.

We also provide other medical equipment and accessories. If you have any other needs or any questions about this product, please feel free to contact us, we will reply you as soon as possible.
