Philiph X3 Patient Monitor ECG Board 453564521601 453564521611

Philiph X3 patient monitor ECG board

453564521601 453564521611

► Brief Introduction of Philiph X3 patient monitor ECG board 453564521601 453564521611

The ECG (electrocardiogram) board of the Philiph X3 monitor is one of the monitor's main components, responsible for the acquisition and

processing of ECG signals.The design and performance of Philiph X3 patient monitor ECG board directly affects the accuracy and reliability of the

monitor. In practice, ensuring the proper functioning of the ECG circuit is critical to patient safety.

► Function of Philiph X3 patient monitor ECG board 453564521601 453564521611

• Signal Acquisition: ECG signals are collected using electrodes attached to the patient's body surface. These signals are typically transmitted to the card via leads.
• Signal Processing: Amplifies, filters, and digitizes the collected raw signals to improve signal quality and reduce interference.
• Waveform Analysis: Analyzes ECG waveforms using algorithms to detect abnormalities such as arrhythmias and ST-segment changes.
• Data Storage and Display: Stores processed ECG data in the internal buffer or external memory and displays it in real time on the screen. · Alarm function: When arrhythmias or other abnormalities are detected, the card triggers an alarm signal to alert medical personnel.

► Specification of Philiph X3 patient monitor ECG board 453564521601 453564521611

► Philiph X3 patient monitor ECG board 453564521601 453564521611 maintenance

• Abnormal ECG waveform: The waveform is displayed abnormally or distorted.
• Signal loss: The ECG signal cannot be acquired.
• Alarm failure: Even if arrhythmia is detected, the alarm cannot be activated.

► About CWT Technology HK Limited

CWT Technology HK Limited is a developing company ,mainly selling patient monitor ,ECG ,defibrillator ,ultrasound ,spare parts ,accessories

.With the developing ,our customers are from all over the world,such as USA ,Italy ,Spain ,Malaysia ,Philippines,Indonesia ,Thailand ,Colombia

,Saudi Arabic ,United Arab Emirates ,Oman etc .

►  Photo of Philiph X3 Patient Monitor ECG Board 453564521601 453564521611

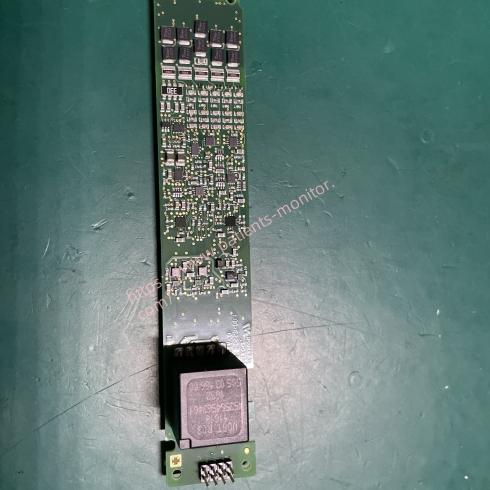

Below picture is a ECG Circuit board ,which is used on Philiph X3 patient monitor .The part no is 453564521601 453564521611.

The ECG board is one of the most important part of Philiph X3 patient monitor

Thank you so much for your attention .If you're interested in Philiph X3 Patient Monitor ECG Board 453564521601 453564521611,feel free to contact us .Thank you.
