NL6448BC33-46 LCD Color Display Assembly with Front Panel for Mindray Datascope Passport2 Patient Monitor
Mindray Datascope Passport2 Display
NL6448BC33-46 LCD Color Display Assembly with Front Panel for Mindray Datascope Passport2 Patient Monitor
► Brief Description
The Mindray Datascope Passport2 Patient Monitor features a color TFT LCD Display Assembly NL6448BC33-46 that displays heart rate, noninvasive blood pressure (NIBP), pulse oxygen saturation (SpO2), respiratory rate, and body temperature (T1). Additional digital display areas for the Passport 2 include: invasive blood pressure (IBP1 and IBP2) (optional), anesthetics (optional), oxygen and nitric oxide (optional), ST (optional), and carbon dioxide (optional). An optional built-in recorder provides hard copies of all digital data and waveforms, as well as tabular trend information.

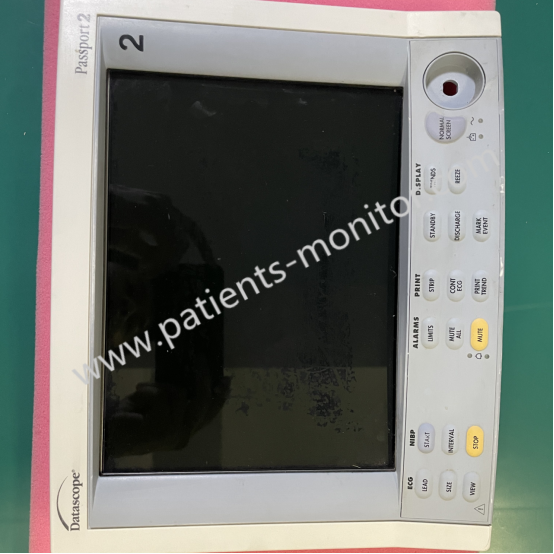

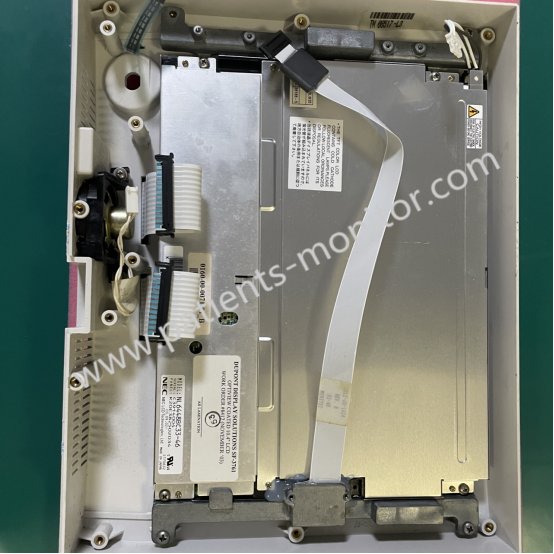

► Detailed Photos
► Display

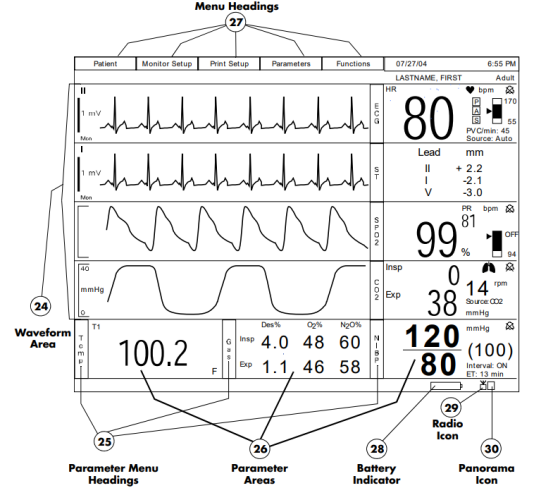

The Mindray Datascope Passport2 Patient Monitor LCD Color Display Assembly NL6448BC33-46 provides menus, waveforms, parameter information, and messages. The following diagram shows the screen layout.
The default operation follows these basic rules:
- If waveforms and their associated parameter tiles are displayed, they are horizontally linked and displayed in the same color for easy reading. ECG parameters may not follow this rule because multiple vectors can be viewed simultaneously.
- Non-invasive blood pressure and temperature data are displayed only in the bottom row of boxes. When using the Passport 2 monitor, when the fourth, fifth, and sixth waveforms are detected, they are automatically inserted and fill the bottom waveform area.
- The font size of parameter data varies depending on the amount of data on the screen to maximize the magnification of the numbers.

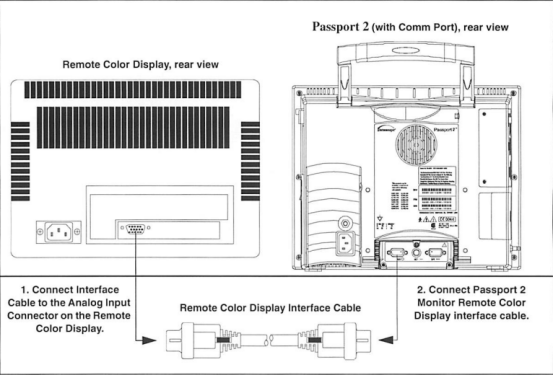

► Remote Color Display
1. Connect Interface Cable to the Analog Input Connector on the Remote Color Display.
2. Connect Passport 2 Monitor Remote Color Display interface cable.
► Display Testing
Display testing offers two options:
pixel testing and color testing. Color testing is only applicable to devices equipped with color displays.
► FAQ
| Q1: Have enough stock? |
| A1: Yes, we have enough stock, please contact me for more details. |
| Q2: How about the price? |
| A2: We accept negotiable prices. Please contact us for the lowest price. |
| Q3: Is this display for Mindray Passport2 Monitor? |
| A3: Yes, it's original from Mindray. |
