PHiliph DFM100 XL+ Defibrillator Machine Capacitor 453564951311 100uf 2600 VDC High Voltage

Description

How to Install the Capacitor into the Tray.

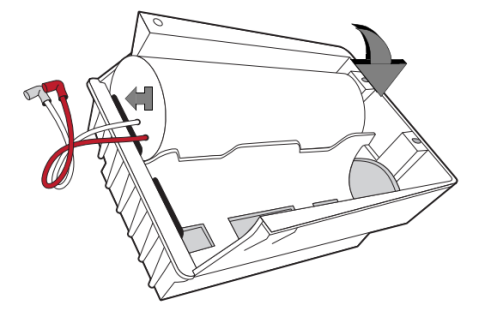

- Position the Tray as shown in picture.

- Position the Capacitor over the Tray compartment on the Power Supply side, with the red wire to the center of the compartment. Leave the other compartment empty.

- Install the wire end of the Capacitor first. Then press on the Capacitor to slip the other side into the Tray.

The PHiliph XL+ defibrillator requires a very high instantaneous release of energy to stop an irregular heart rhythm. However, the defibrillator's internal battery voltage is too low to directly provide such high energy. A capacitor acts as an energy storage device. When you press the "charge" button, the device's internal boost circuitry converts the battery's low voltage into a high voltage of several thousand volts, storing a huge amount of energy in the treatment capacitor. This stored energy can be released instantaneously (usually in milliseconds), generating a momentary but extremely powerful current strong enough to penetrate the chest wall and simultaneously depolarize most of the heart muscle cells, thus "resetting" the heart's electrical activity.

Defibrillators use biphasic waveform technology, and the therapeutic capacitor is the basis for achieving this waveform. A biphasic waveform means that the current flows in one direction first, then reverses direction and flows again. This waveform has proven to be more effective than the older monophasic waveform, requiring less overall energy and causing less potential damage to the myocardium. The capacitor, through precise charge and discharge control, ensures that the released energy is a stable biphasic waveform that conforms to design standards, thus safely and effectively performing defibrillation.

Warranty

Warranty period: 90 days

We provide warranty for both new and used equipment. Different equipment has different warranty periods. You can contact us to check the warranty details.

Delivery Details

Express delivery method: DHL, FedEx, UPS, etc.

Once payment is completed, we will immediately deliver the product to you quickly and safely. And the delivery date is about 3-5 working days, the shipping cost depends on your country and region.

If your delivery date is longer than expected, or you want to know the shipping details, you can contact us at any time.

Quality

Whether it is new equipment or old equipment, our engineers will conduct a comprehensive inspection before arranging delivery, and we have a 3 month warranty period, so you can purchase with confidence.

Warning

1. It's must use the correct electrical outlet to avoid damage or malfunction.

2. Try to avoid long-term storage, especially in high temperature and high humidity environments.

3. Do not use high-temperature, high-pressure vapour or ionizing radiation as disinfection methods.

4. Do not use chloric disinfectant such as chloride, sodium hypochlorite etc.

5. Please keep it away from water and fire.

We also provide other medical equipment and accessories. If you have any other needs or any questions about this product, please feel free to contact us, we will reply you as soon as possible.
