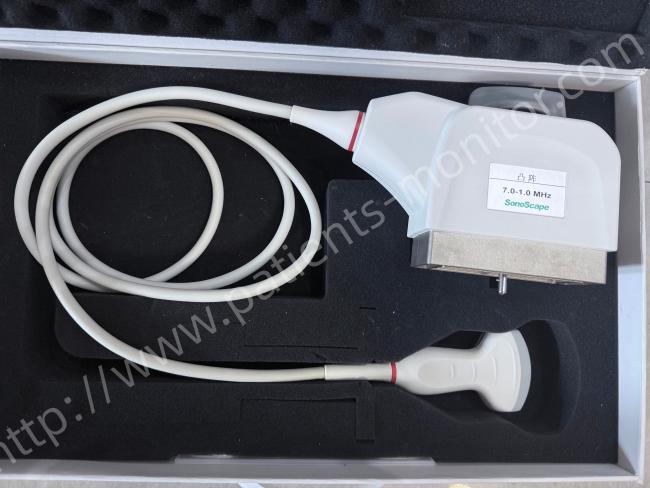

SonoScape 3C-A Convex Probe Curved Array Transducer for Ultrasound Machine Abdominal Obstetrics Gynecology

Description

Specification:

Brand: SonoScape

Model: 3C-A

Frequency: 3.2 MHz

Frequency Range: 1 - 7 MHz

Elements: 128

FOV: 60

Active surface: 60 x 18 mm

Radius: 50 mm

Compatible: SonoScape M22 Ultrasound System

Application: Abdominal, Gynaecological and Urological Examinations

The SonoScape M22 ultrasound system boasts multiple imaging modes, a wide range of applications, and a user-friendly experience. It delivers high-resolution image quality, combining practicality with a modern design. The included ultrasound cart features four lockable casters and an ergonomic handle, making it easy to use in multiple rooms of a doctor's office or clinic. The high-resolution, wide-angle LCD screen can be tilted vertically and horizontally to accommodate different user postures and heights, while individually programmable shortcut keys allow for personalized settings, enhancing workflow efficiency. To further optimise workflows, the ultrasound unit has a practical smart touch screen. Not only is it easy to use, but with pre-installed parameters and calculations, it also ensures a lower risk of incorrect examination settings.

The transducer elements of the convex array probe are designed in an arc shape, forming a convex support structure that allows the sound beam to diverge naturally, creating a fan-shaped scanning field of view. The arc-shaped contact surface provides a wider near-field imaging range, avoiding rib obstruction and allowing observation of the heart, liver, etc., through the subxiphoid process or intercostal spaces. It has a large penetration depth and is suitable for obese patients or deep internal organs.

Warranty

Warranty period: 90 days

We provide warranty for both new and used equipment. Different equipment has different warranty periods. You can contact us to check the warranty details.

Delivery Details

Express delivery method: DHL, FedEx, UPS, etc.

Once payment is completed, we will immediately deliver the product to you quickly and safely. And the delivery date is about 3-5 working days, the shipping cost depends on your country and region.

If your delivery date is longer than expected, or you want to know the shipping details, you can contact us at any time.

Quality

Whether it is new equipment or old equipment, our engineers will conduct a comprehensive inspection before arranging delivery, and we have a 3 month warranty period, so you can purchase with confidence.

Warning

1. It's must use the correct electrical outlet to avoid damage or malfunction.

2. Try to avoid long-term storage, especially in high temperature and high humidity environments.

3. Do not use high-temperature, high-pressure vapour or ionizing radiation as disinfection methods.

4. Do not use chloric disinfectant such as chloride, sodium hypochlorite etc.

5. Please keep it away from water and fire.

We also provide other medical equipment and accessories. If you have any other needs or any questions about this product, please feel free to contact us, we will reply you as soon as possible.
