Mindray VS-800 monitor mainboard with VGA and network card interface 6006-30-39352
This accessory is the motherboard for the Mindray VS-800 device. It features VGA and network interface cards, with PN number 6006-30-39352. It is an original motherboard and can be used as a replacement without compatibility issues. The motherboard is the brain of the device, its signal processing center, and its most important component; using the original is recommended.
-
1. Data Transmission Center

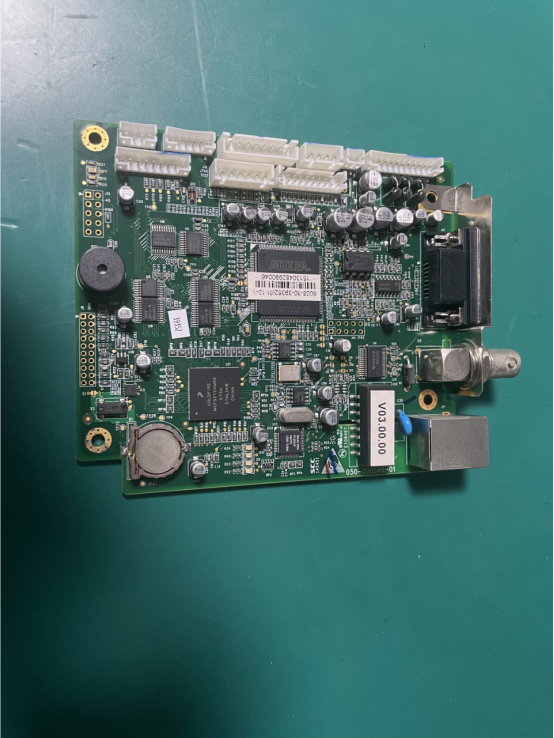

The motherboard houses the main control chip (identified as AU1300 in the image), responsible for receiving, processing, analyzing, and storing data such as blood oxygen and blood pressure collected by sensors. It is the core module for parameter processing in the monitor.
2. Interface Expansion
The motherboard has multiple white interfaces for connecting other expansion interfaces, such as a VGA interface and an external network card, enabling signal exchange between the device and external/internal modules.
3. Function Control Driver
It receives function commands transmitted from the device's keyboard, processes them on the motherboard, and feeds them back to the display screen, ensuring the normal operation of all device functions.
4. Data Storage
The motherboard has a memory card that can store some historical monitoring data. When needed, the data can be exported via an external USB port for other purposes, such as teaching or consultation.
|
Name |
Mainboard |
|
Model |
6006-30-39352 |
|
Brand |
Mindray |
|
Compatible machine |
VS-800 monitor |
|
Main control chip |
AU1300 processor |
|
Interface types |
VGA interface, network card interface, multiple ribbon cable interfaces |
|
Operating voltage |
DC 5V/12V |
|
Operating temperature |
-10℃ to 50℃ |
|
Condition |
Original |
|
Weight |
Light |
Q1: When does a device malfunction indicating a motherboard problem?
A1: The motherboard is the signal processing center of the device. When the device fails to power on, displays a black screen, or displays garbled characters, it indicates a motherboard failure. Expansion interface failures and multi-module failures also require motherboard replacement. More detailed motherboard fault descriptions require specific analysis of the specific problem.
Q2: What should I do if the network card interface cannot connect to the internet?
A2: Check if the network cable is working properly and if the network configuration is correct. If the network environment is normal, the problem may be with the motherboard's network card module, requiring replacement of the motherboard or the network card assembly.
Q3: Can a motherboard with burnt-out components be repaired?
A3: If only a single common component is faulty, a professional repair technician can replace it with the same model. If core components such as the main control chip or memory chip are damaged, it is recommended to replace the entire motherboard to avoid insufficient stability after repair.
