Original with Good Condition Mindray VS-800 Monitor Keypad 8006-20-39355 6006-30-39354 6006-30-39446
Original with Good Condition Mindray VS-800 Monitor Keypad 8006-20-39355 6006-30-39354 6006-30-39446

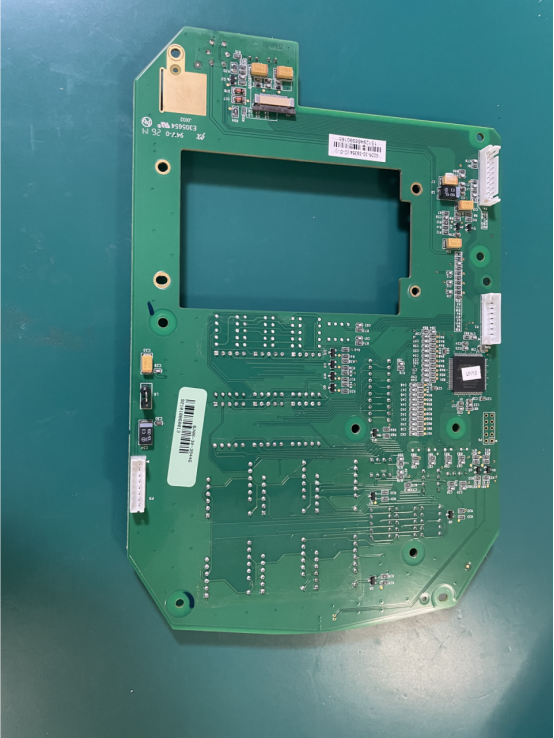

The Mindray VS-800 Monitor Keypad is the original keypad for the device and also features a display function. The accessory models are 8006-20-39355, 6006-30-39354, and 6006-30-39446. As seen in the actual product image, the keypad has a cutout in the center, reserved for the display screen. In addition, there are various sizes of displays around it, showing blood oxygen, pulse rate, and blood pressure (including systolic, diastolic, and mean pressure) monitored by the device. It also has silicone key sensors that can directly receive external operation commands and transmit them to the motherboard. Therefore, we can conclude that the keypad is installed directly below the device, aligned one-to-one with the casing, presenting a unified look to the device.
-
1. Operation Command Input
The black buttons on the left and top of the keypad in the detail image are physical buttons. These buttons allow users to input commands for monitoring functions such as "non-invasive blood pressure," "record," and "mute." This accessory is the core entry point for medical staff to issue operation commands to the device.
2. Parameter Display
The area on the keypad that looks like a display screen is actually the device's LED digital tube module. It displays real-time values of key physiological parameters such as SpO₂, PR, and blood pressure (systolic/diastolic), providing medical staff with intuitive information about the patient's vital signs.
3. Signal Transmission
The keypad has a circuit interface (white ribbon cable interface in the image), which transmits key commands to the host computer. Simultaneously, the host computer transmits the data to the digital tube for display, forming a closed loop of "operation - display."
|
Name |
Keypad |
|
Model |
8006-20-39355/6006-30-39354/6006-30-39446 |
|
Brand |
Mindray |
|
Compatible machine |
VS-800 monitor |
|
Materials |
PCB board: Fiberglass Buttons: Silicone + Metal Digital display: LED |
|
Operating voltage |
DC 5V |
|
Number of buttons |
12pcs |
|
Digital display configuration |
12-digit LED digital display |
|
Condition |
Used |
|
Weight |
100g |
Frequently Asked QuestionsQ1: Can the digital display area on the keyboard panel be replaced individually if it's faulty?
A1: It's not recommended to replace it individually. The digital display and the keyboard panel are soldered together. Removing the digital display may damage the keyboard panel, so we recommend replacing the entire panel.
Q2: The keys are unresponsive. Do I need to replace the keyboard panel?
A2: Unresponsive keys don't necessarily mean the keys are faulty. You need to check for issues like loose cables, stuck buttons, or restarting the computer. If it's confirmed to be a hardware fault on the keyboard panel, then replace the keyboard panel.
