Biocare PM900 Patient Monitor Connector Cable Between Motherboard with Keyboard Repair Parts

Biocare PM900 Patient Monitor Connector Cable Between Motherboard with Keyboard Repair Parts

Description

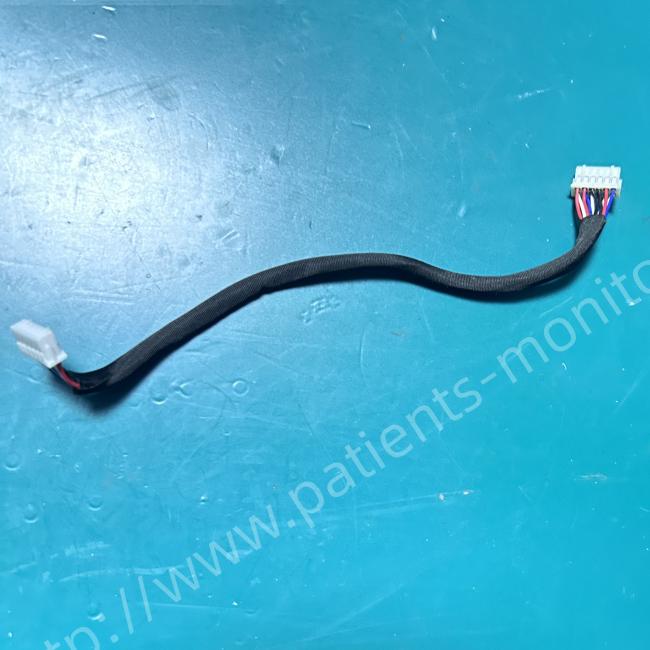

This replacement connector cable is an internal cable for the Biocare PM900 bedside patient monitor. It connects the motherboard and keyboard board to enable human-computer interaction and transmits control signals and data.

Functions:

1. When a physical key on the keyboard is pressed, the key signal is transmitted to the motherboard via this connection cable. The motherboard receives the signal, analyzes it, and executes the corresponding operation, which is then reflected on the host display screen, enabling the human-machine interface.

2. The motherboard can transmit system status information back to the keyboard via the connection cable, driving the indicator lights on the keyboard to update synchronously, allowing doctors to easily understand the monitor's operating status.

3. The motherboard continuously monitors the keyboard's operating status via the connection cable. If a connection abnormality is detected, the system will display a fault prompt, facilitating troubleshooting and repair by engineers.

How to replace the old cable?

1. Use a screwdriver to open the monitor's casing.

2. The mainboard is usually located in the middle or rear of the device, and the keyboard is below the front panel. Locate the connecting cables.

3. Press the connector latches and disconnect the plug to remove the old cable.

4. Insert the new cable into the connector using the original mounting interface, ensuring the latches are fully engaged.

5. Perform a power-on test on the machine, ensuring it is safe to do so.

6. After testing, reassemble the casing and tighten the screws to complete the replacement.

Warranty

Warranty period: 90 days

We provide warranty for both new and used equipment. Different equipment has different warranty periods. You can contact us to check the warranty details.

Delivery Details

Express delivery method: DHL, FedEx, UPS, etc.

Once payment is completed, we will immediately deliver the product to you quickly and safely. And the delivery date is about 3-5 working days, the shipping cost depends on your country and region.

If your delivery date is longer than expected, or you want to know the shipping details, you can contact us at any time.

Quality

Whether it is new equipment or old equipment, our engineers will conduct a comprehensive inspection before arranging delivery, and we have a 3 month warranty period, so you can purchase with confidence.

Warning

1. It's must use the correct electrical outlet to avoid damage or malfunction.

2. Try to avoid long-term storage, especially in high temperature and high humidity environments.

3. Do not use high-temperature, high-pressure vapour or ionizing radiation as disinfection methods.

4. Do not use chloric disinfectant such as chloride, sodium hypochlorite etc.

5. Please keep it away from water and fire.

We also provide other medical equipment and accessories. If you have any other needs or any questions about this product, please feel free to contact us, we will reply you as soon as possible.
