Biocare PM900 Patient Monitor Parts Connecting Cable Between Motherboard to Power Supply Board

Biocare PM900 Patient Monitor Parts Connecting Cable Between Motherboard to Power Supply Board

Description

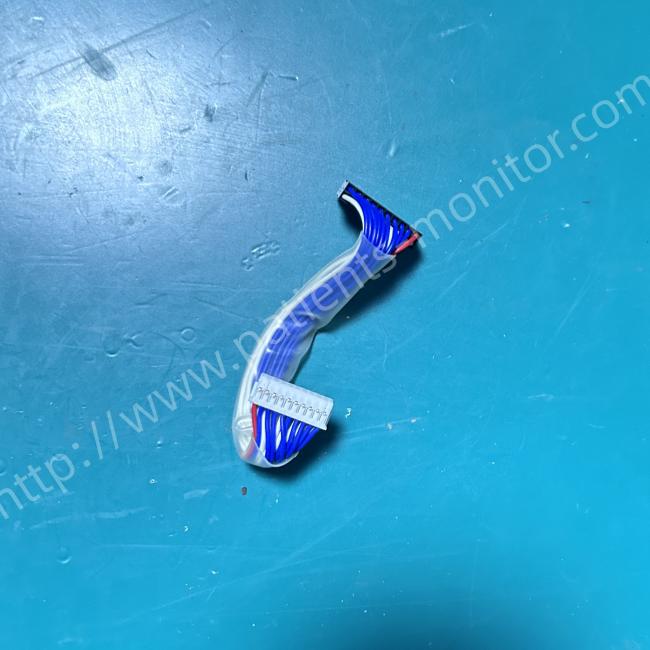

This cable is mainly used to connect the motherboard and power board of the Biocare PM900 monitor. It is used to transmit power, transmit control signals, and ensure equipment safety. If this connection cable is faulty or damaged, the monitor will usually fail to power on, automatically restart, or display a black screen after the power button is pressed.

Easy to Install: The engineer should wear an anti-static wrist strap, place the monitor on a professional repair workbench, unscrew the screws, and remove the monitor's outer casing. The motherboard is inside the monitor, and the power board is located at the power interface. Locate the connection cable between the motherboard and the power board, carefully disconnect the old cable, align the new cable with the connector, and connect the motherboard and power board. Perform a power-on/off test on the monitor, ensuring safety. Once the test is successful, reinstall the outer casing, thus completing the replacement installation.

Features:

1.Power Distribution: The power board converts external AC power into low-voltage DC power required by the internal circuitry, and the connecting wires deliver these different currents to the motherboard.

2.Signal Control: This connection cable allows you to control the device's power on/off, monitor battery status, and provide real-time feedback on power status.

3.Protection and Grounding: This connection cable includes a ground wire to ensure that the motherboard and power board are at the same potential, reduce signal noise, and ensure the accuracy of measurements of weak physiological signals such as ECG and blood oxygen.

Safety Warning: Medical electronic equipment contains high-voltage circuits that are critical to patient safety. Do not attempt to disassemble it yourself if you are not a qualified professional. After repair, leakage current and grounding tests must be performed using a standard electrical safety analyzer. The equipment can only be used clinically after passing these tests.

Warranty

Warranty period: 90 days

We provide warranty for both new and used equipment. Different equipment has different warranty periods. You can contact us to check the warranty details.

Delivery Details

Express delivery method: DHL, FedEx, UPS, etc.

Once payment is completed, we will immediately deliver the product to you quickly and safely. And the delivery date is about 3-5 working days, the shipping cost depends on your country and region.

If your delivery date is longer than expected, or you want to know the shipping details, you can contact us at any time.

Quality

Whether it is new equipment or old equipment, our engineers will conduct a comprehensive inspection before arranging delivery, and we have a 3 month warranty period, so you can purchase with confidence.

We also provide other medical equipment and accessories. If you have any other needs or any questions about this product, please feel free to contact us, we will reply you as soon as possible.
