Biocare PM-900 Monitor Power Module with Three-Prong Power Interface for Voltage Conversion and Circuit Protection
Biocare PM-900 monitor power module with three-prong power interface 50305040-01
This module is the power module for the Biocare PM-900 monitor. It also includes a three-prong power connector. The module's PN is 50305040-01. Please carefully verify the part number before purchasing.

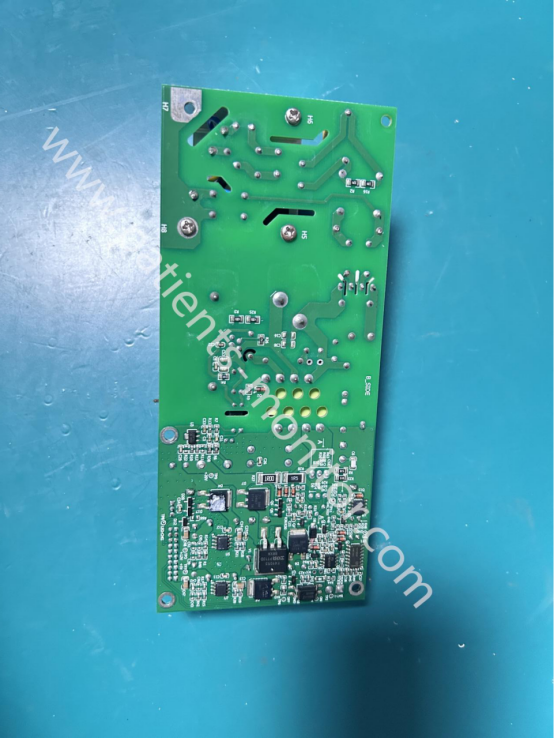

Biocare PM-900 monitor power module has many cylindrical components that resemble batteries; this is an important distinguishing feature from other circuit boards.
The power board has metal dividers that separate the circuit board into three sections, each with a different function and workload to ensure proper circuit board operation.
As seen in the product details image, the circuit board also includes a three-prong socket. The three central prongs of this socket are made of metal, while the outer black protective layer is made of thick, durable, and flame-retardant ABS engineering plastic, providing a high level of safety protection around the socket interface.
- Supports External Power Supply
The module's built-in three-prong power socket allows the device to be powered by either battery or an external power source, serving as the device's sole access point to external power. - Voltage Conversion and Distribution
After connecting to an external power source, the power module converts the external 100-220V voltage into the DC voltage required by the device's internal critical components, such as the 5V required by the motherboard. - Circuit Protection
The power supply incorporates multiple protection mechanisms. When the input voltage is too high, the power supply's protection mechanism automatically activates, automatically stopping power supply to prevent damage to the device. - Stabilized Voltage
The power board has a function to remove impurities from the voltage, ensuring a stable DC output to all components. Stable voltage ensures stable data monitoring and normal operation of the device, preventing significant errors.
| Product name | Power module with three-prong power interface |
|---|---|
| Model | 50305040-01 |
| Type | PCB Board |
| Compatible model | Biocare PM-900 |
| Condition | Used, Original |
| Material | PCB+Plastic |
| Input voltage | AC 100-240V |
| Output voltage | DC 5V, DC 12V |
| MOQ | 1 piece |
| Package | 1pc/carton |
Q1: Can the three-prong power socket on the power board be replaced separately?
A1: Yes, the three-prong power socket can be replaced separately. As seen in the top view of the product, the three-prong power socket is fixed to the power board with two screws. You can remove the screws and replace it separately. If the socket is burnt out and needs replacement, please check if the power board's circuit board is affected. If so, it is recommended to replace it as well.
Q2: How do I install and use the power board after purchasing it?
A2: You can contact our sales staff after receiving the goods. We have a professional engineering team that will provide you with professional technical support through video recording, video calls, etc.
Q3: Is it normal for the power board to get hot during operation?
A3: Slight heating during operation is normal. If it gets very hot to the touch, it is abnormal. We recommend stopping use of the machine and turning off the power to avoid more serious damage from abnormal heating.
