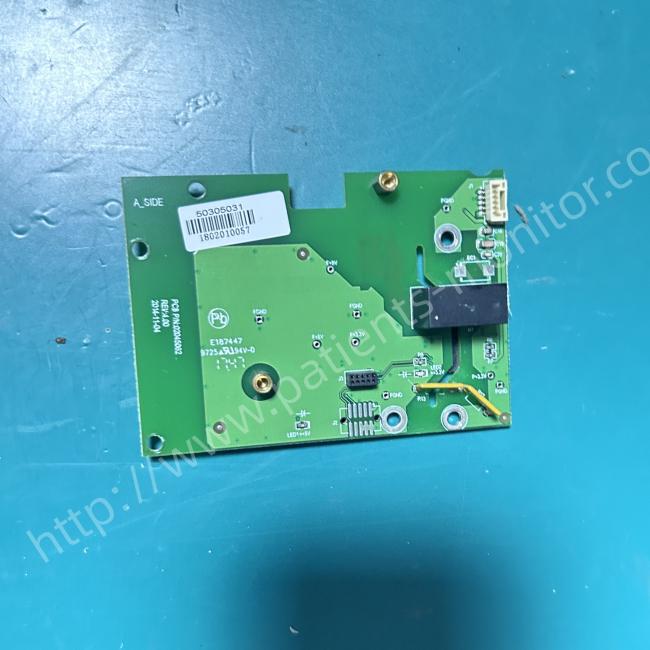

Biocare PM900 Patient Monitor Connect Board Between Main Board to SpO2 Board 02045062

Biocare PM900 Patient Monitor Connect Board Between Main Board to SpO2 Board 02045062

Description

This connector board is primarily used to connect the mainboard and the pulse oximeter plate on the PM900 patient monitor. Its main function is to facilitate signal and power transmission. The mainboard can supply power to the pulse oximeter plate via the connector board, while ensuring the plate is not damaged by excessive power. The pulse oximeter plate converts the collected physiological signals into data and sends it to the mainboard. The mainboard then filters the data before displaying it on the screen for medical staff to view. The connector board distributes power and filters data signals, ensuring effective cooperation between the mainboard and the pulse oximeter plate.

Functions:

- Signal Transmission and Processing: The pulse oximeter is responsible for collecting the transmitted signals of red and infrared light from the human body and performing preliminary processing. The connection board is responsible for stably transmitting the processed blood oxygen saturation data and pulse signals to the main board for display and storage. The main board can also send control commands to the pulse oximeter via the connection board to adjust the test data to suit different patients' testing conditions.

- Power Supply: The connection board can supply power from the main board or device power supply to the pulse oximeter, ensuring that the sensors, CPU, and processing circuits on the pulse oximeter can function properly.

How to Install?

Note: This procedure should be performed by a professional technician, ensuring the monitor is completely powered off.

- Wear insulated wristbands or gloves, loosen the monitor's screws, and open the monitor casing.

- Locate the mainboard and pulse oximeter plate, usually located inside the monitor and connected together.

- Locate the connecting cables between the mainboard, pulse oximeter plate, and the connection board, and take photos for documentation.

- Disconnect the connecting cables and remove the old connection board.

- Install the new connection board in its original position, then reconnect the connecting cables.

- Safely connect the monitor to power and test. After testing, reassemble the monitor, tighten the screws, and the replacement installation is complete.

Warranty

Warranty period: 90 days

We provide warranty for both new and used equipment. Different equipment has different warranty periods. You can contact us to check the warranty details.

Delivery Details

Express delivery method: DHL, FedEx, UPS, etc.

Once payment is completed, we will immediately deliver the product to you quickly and safely. And the delivery date is about 3-5 working days, the shipping cost depends on your country and region.

If your delivery date is longer than expected, or you want to know the shipping details, you can contact us at any time.

Quality

Whether it is new equipment or old equipment, our engineers will conduct a comprehensive inspection before arranging delivery, and we have a 3 month warranty period, so you can purchase with confidence.

Warning

1. It's must use the correct electrical outlet to avoid damage or malfunction.

2. Try to avoid long-term storage, especially in high temperature and high humidity environments.

3. Do not use high-temperature, high-pressure vapour or ionizing radiation as disinfection methods.

4. Do not use chloric disinfectant such as chloride, sodium hypochlorite etc.

5. Please keep it away from water and fire.

We also provide other medical equipment and accessories. If you have any other needs or any questions about this product, please feel free to contact us, we will reply you as soon as possible.
