Portable GE Dash2000 Patient Monitor Original Used-Good Condition Medical Equipment

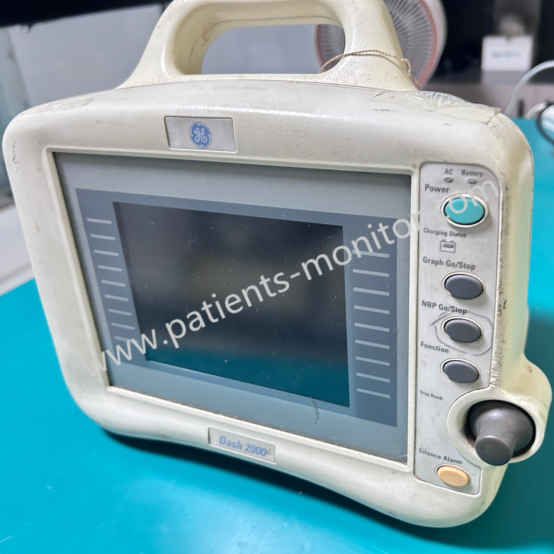

GE Dash2000 Patient Monitor
Portable GE Dash2000 Patient Monitor Original Used-Good Condition Medical Equipment
► Brief Description
The GE Dash2000 patient monitor is a portable, multi-parameter monitoring device suitable for emergency rooms, intensive care units, and general wards. It can monitor various physiological parameters, including electrocardiogram (ECG), non-invasive blood pressure, respiratory impedance, oxygen saturation (SpO2), and body temperature. Invasive blood pressure monitoring is optional. All these parameters are monitored via the patient cable interface located on the right panel of the monitor. Easy-to-use buttons and fine-tuning knobs allow for single-point control of almost all monitor functions.

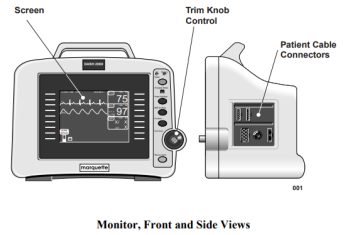

► Detailed Photos
► Specification
Display
|
Size: |
5.8-inch diagonal |
|
Type: |
LCD Display |
|
Resolution: |
320 by 240 pixels |
|
Number of traces: |
3 |
|
Number of seconds/trace: |
3.8 at 25 mm/sec |
|
All waveforms: |
25 mm/sec –20% (with erase bar) |
|
Waveform display: |
Individual |
|
Display organization: |
Prioritized by parameter |
Environmental Specifications
|
AC voltage: |
100 – 240 VAC ±10% |
|
Power consumption: |
16 W normal use, 45 W fast charge |
|
Cooling: |
Convection |
|
Heat dissipation: |
240 BTU/hr |
|
Battery: |
nickel-cadmium (NiCd), 12 V, 2.0 ampere hours |
|
Fuses: |
100 – 240 VAC: T2.0A, 250 VAC, 5 x 20 mm |
|
Design (general): |
Continuous operation, not protected against ingress of liquids |
|
Min. battery operating time: |
1.5 hours |
|
|
|
|
Operating conditions: |
|
|
Ambient temperature: |
10 to 40 °C (50 to 104 °F) |
|
Relative humidty: |
30 – 70% |
|
Atmospheric pressure: |
700 to 1060 hPa |
|
Storage conditions: |
|
|
Maximum: |
50 °C (122 °F) at 50% relative humidity, or 70 °C (158 °F) at 15% relative humidity |
|
Minimum: |
-25 °C (-13 °F) |
|
Atmospheric pressure: |
500 to 1060 hPa |
Physical Specifications
|
Height: |
21.5 mm (8.5 inches) |
|
Width: |
26.0 cm (10.2 inches) |
|
Depth: |
20.0 cm (7.9 inches) |
|
Weight: |
11.5 lb (5.2 kg) |
► Features
The GE Dash2000, as a standalone patient transport monitor, boasts excellent durability and clinical applicability:
1. Rugged and Durable: The device casing is made of aerospace-grade resin material, offering superior shock resistance, drop resistance, and waterproofing (IPX1 waterproof rating, withstands a 0.75-meter drop).
2. High Environmental Adaptability: Industrial-grade electronic component design ensures stable performance across a wide temperature range (-40°C to +85°C).
3. Easy to Use: Equipped with a 10.4-inch display, it presents various information and data intuitively, allowing medical staff to quickly access data.
4. Data Management: It features automatic recording and storage of monitoring data, facilitating subsequent analysis and diagnosis.
5. Certification: Compliant with IEC 60601-1 certified, CE Marking for the 93/42/EEC Medical Device Directive, and UL classified for CAN/CSA C22.2 No.601.1 standards, making it a reliable and trustworthy choice.
