Portable Goldway UT3000A Patient Monitor - Used with Good Condition Medical Equipment

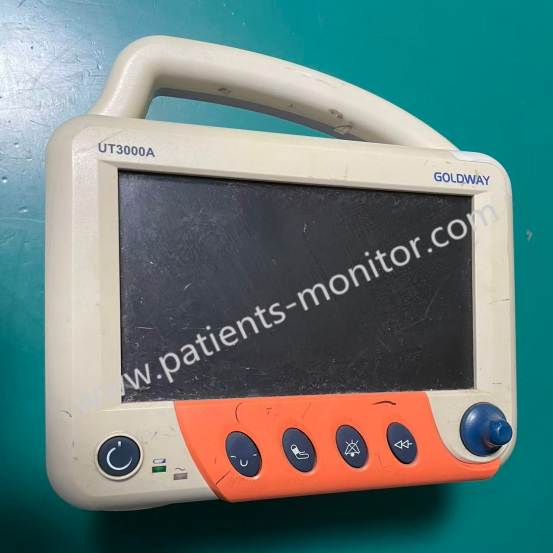

Goldway UT3000A Monitor
Portable Goldway UT3000A Patient Monitor - Used with Good Condition Medical Equipment
► Brief Description
The UT3000A is a patient monitor designed for monitoring, recording, and alarming multiple physiological parameters in adults, children, and newborns in medical settings. It is also suitable for transport within medical facilities. It features a color TFT display and offers both battery and power supply options. The monitor primarily displays parameters such as electrocardiogram (ECG), respiration (RESP), non-invasive blood pressure (NIBP), oxygen saturation (SpO2), and body temperature (TEMP), and includes a printing function.
► Detailed Photos
► Specification
|
Display |
|
|
Type |
Color TFT LCD |
|
Size |
10.4" / 12.1" |
|
Resolution |
800 x 600 pixels |
|
Channels |
6 channels or 8 channels (adjustable) |
|
Weight & Dimensions |
|
|
Weight |
Approx. 6 kg (with one battery) |
|
Dimensions |
320mm(W)x157mm(D) x252mm(H) |
|
Parameters |
|
|
Standard |
ECG, HR, RESP, NIBP, SpO2, PR, Dual TEMP |
|
Optional |
Dual IBP, etCO2, Recorder |
|
Power Supply |
|
|
AC power input |
100 - 240 VAC, 50/60Hz |
|
Battery |
Rechargeable battery |
► Environmental Specification
|
Temperature - working |
10°C – 40°C (50°F – 104°F) |
|
Temperature - storage and transportation |
-20°C – 55°C (-4°F – 131°F) |
|
Relative humidity - operating |
≤ 80% |
|
Relative humidity - storage and transportation |
≤ 95% |
|
Barometric pressure - working |
70 kPa – 106 kPa |
|
Barometric pressure - storage and transportation |
50 kPa – 106 kPa |

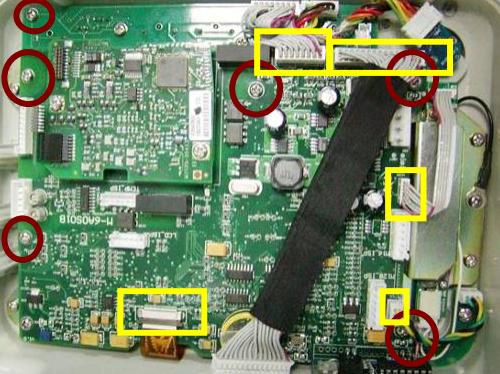

► Removing the Main board Assembly
1. Disassemble the monitor.
2. Remove the SpO2 module.
3. Disconnect the cables. (Rectangles)
4. Remove the screws.( Circles)
4. Remove the Main board Assembly.
► Cleaning
- Cleaning the Monitor
Before cleaning the monitor, please turn off the power and unplug the power cord.
1. Clean the monitor's casing and screen with a damp cloth containing liquid detergent or one of the following cleaners:
– Mild soap
– Alconox dishwashing liquid
– 3% ammonia and glass cleaner
– 70% ethanol, 70% isopropanol and glass cleaner.
2. Allow the cleaned parts to air dry or wipe them dry with a cloth.
- Cleaning Cables
Keep cables clean and dust-free:
1. Wipe with a lint-free cloth dampened with warm water (maximum 40℃/104℉) and soap or diluted non-corrosive detergent.
2. Dry the equipment with a soft cloth.
