BLT Biolight Q5 Patient Monitor Li-ion Battery pack LB-08 11.1V 4000mAh PN 12-100-0003 Replacement battery
BLT Biolight Q5 Patient Monitor Li-ion Battery pack LB-08 11.1V 4000mAh PN 12-100-0003 Replacement battery

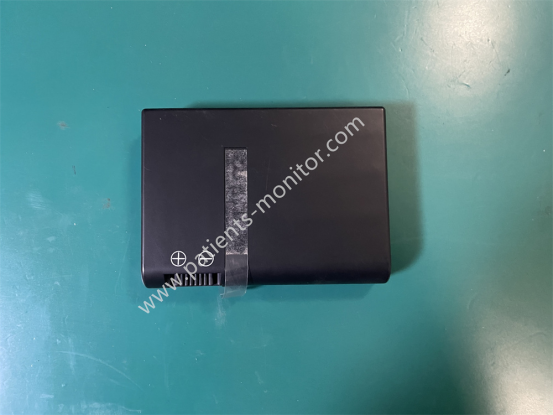

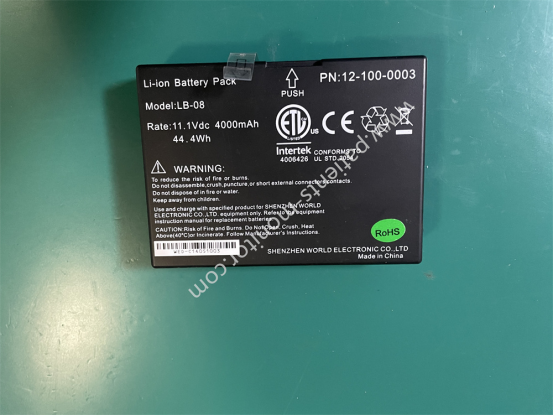

This is an original battery for the BLT Q5, model number LB-08, part number 12-100-0003, a rechargeable lithium battery. It has a voltage of 11.1V and a capacity of 4000mAh, making it a relatively compact built-in battery.
The battery ensures that the BLT Q5 Patient Monitor can continue monitoring during sudden power outages or power failures, guaranteeing the device's portability.
The battery does not require separate charging; it charges when the device is connected to an external power source. When the device is disconnected from the power source, it remains powered, automatically switching to battery power. The switching between the two is seamless and does not affect the continuity of monitoring.
The battery can communicate with the BLT Q5 Patient Monitor's main display, providing real-time feedback on the battery's charging status for the operator to monitor.
After providing power to the device for a certain period, the battery voltage will decrease, generating a low battery warning. At this point, the device should be charged promptly to prevent over-discharge of the battery.
Check Battery Performance
Battery performance degrades over time.
You can check battery performance by following these steps:
1. Stop all monitoring and measurement programs on the monitor.
2. Connect the monitor to a power source. Allow the battery to charge continuously for at least 6 hours.
3. Disconnect the power source and allow the monitor to run on battery power until it automatically shuts down.
4.Battery runtime directly reflects its performance.
|
Product name |
Battery |
|
Model |
LB-08 |
|
PN |
12-100-0003 |
|
Compatible machine |
BLT Q5 |
|
Voltage |
11.1V |
|
Capacitor |
4000mAh |
|
Energy |
44.4Wh |
|
Warranty |
90 days |
|
Condition |
Used, original |
Battery Maintenance
A complete battery optimization cycle refers to the process of a battery completing one full continuous charge followed by a complete discharge without interruption.
Batteries require at least two optimization cycles when first used. If the battery has been used or stored for two months, or if its operating time has significantly decreased, maintenance is required.
