BLT Biolight Q5 Patient Monitor Display driver board HX-D-1 E339169 original patient monitor parts ready to ship

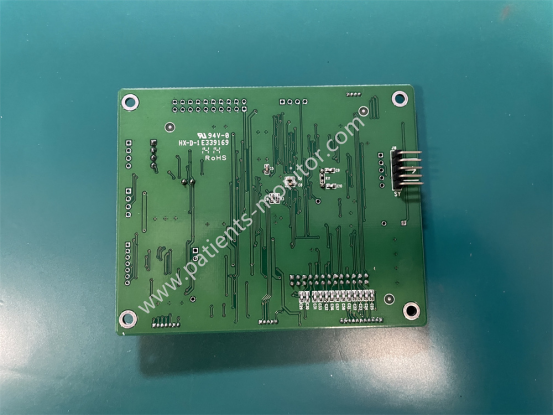

This accessory is the display driver board for the BLT Q5, a circuit conversion board. As seen in the accessory's image, the board's model number is HX-D-1 E339169, indicating it's the original display driver board for the device. Its main function is to convert host signals into drive signals that the display screen can recognize, thus generating the parameters and waveforms we see. It's an integral component of the display screen.
The driver board features multiple interface diagrams for connecting different interfaces. The largest and widest interface is one of the interfaces for the display screen's connection cable, primarily transmitting image data. The remaining interfaces connect to different modules, providing the functions required by the display screen, such as backlight and power supply interfaces.
- Signal Conversion: Before transmitting the processed parameter signals to the display screen, the BLT Q5 monitor motherboard needs to convert the signals into data or image signals that the display screen can display, via the display driver board.
- Control Commands: The driver board receives brightness adjustment commands from the motherboard and outputs corresponding voltage/current signals to control the brightness of the backlight module on the display panel.
| Product name | Display driver board |
| Model | HX-D-1 E339169 |
| Compatible machine | BLT Q5 |
| Material | PCB board |
| Color | Green |
| MOQ | 1pc |
| Weight | About 150g |
| Warranty | 90 days |
| Condition | Used, original |

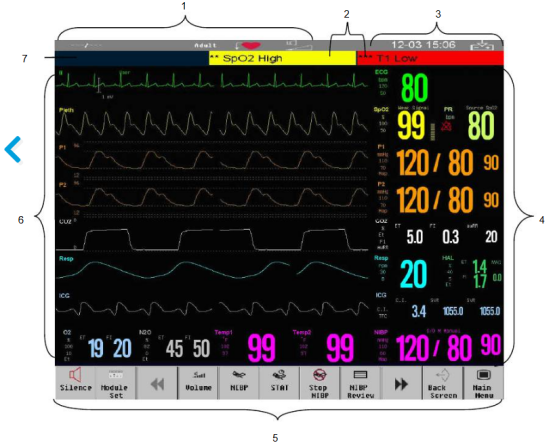

The screen displays measurement values, waveforms, patient information, alarm zones, and menus. The following describes the content displayed in different areas of the screen:
- Patient Information Area: Displays ward number, bed number, patient name, patient category, and patient heart rate status.
- Alarm Area: Displays physiological alarm information at the bottom of the screen.
- Alarm Status Area: System sound is muted. The main screen displays a message indicating that alarm sounds are muted/paused.
- Parameter Area: Consists of multiple parameter areas, displaying the measurement value of each parameter. Each parameter's label is displayed in the upper left corner. The parameter areas on the screen will automatically rearrange when you close or open a parameter module.
- Smart Button Area: Displays smart buttons for performing common operations.
- Waveform Area: Displays waveforms of various physiological parameters. Each waveform's label is displayed in the upper left corner. The waveform areas on the screen will automatically rearrange when you open or close a waveform.
- Technical Alarm Area: Displays technical alarm information and prompts.
