For sale BLT Biolight Q5 patient monitor display board wiring 11-056-0005 with good condition for Medical device
This is a BLT Q5 patient monitor display cable, primarily used to connect the device's display to the main control system. The part number is 11-056-0005. It's an original used cable from a Q5 patient monitor. If you need to verify the cable's performance, please contact us and provide a test video; our engineers will be happy to assist you.

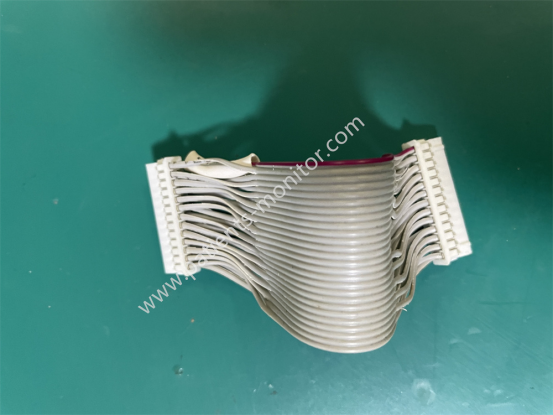

This cable is a multi-core flat ribbon cable, composed of multiple rows of connectors. Both ends have wide white plastic connectors for connecting to the device's display and motherboard. Its main function is to transmit signals between the two. The multiple rows ensure simultaneous transmission of various signals between the motherboard and the display, guaranteeing accurate transmission of touchscreen commands and related data.
-
Image Signal Transmission
When the operator operates the equipment, the host can transmit the corresponding page via cable and display it on the screen.
-
Control Command Transmission
The host can transmit the motherboard's control commands via connection cable and display them on the screen.
| Product name | display board wiring |
|---|---|
| Model | 11-056-0005 |
| Compatible machine | BLT Q5 |
| Cable length | 20cm |
| Color | White |
| MOQ | 1pc |
| Weight | About 60g |
| Warranty | 90 days |
| Condition | Used, original |
Q1: What are the consequences of a broken display board wiring cable 11-056-0005?
A1: A broken cable will affect image or data transmission, causing the screen to go black or data loss. If this occurs, a professional should be consulted to troubleshoot and replace the affected component promptly.
Q2: Can I use a display cable from another device as a substitute?
A2: No, you cannot use a substitute cable. The display screen is involved in data transmission and constantly reflects the data waveform on the screen, playing a crucial role. It is recommended to purchase original display cable as a backup so that it can be replaced promptly if needed.
Q3: Does a damaged outer protective layer of the cable need to be replaced?
A3: A damaged cable protective layer needs to be replaced immediately. The outer protective layer of the cable provides insulation. If it is damaged, it will affect the cable's insulation, leading to a short circuit, which will also cause data loss or garbled characters, and will also shut down the device. It is recommended to replace it promptly.
| Payment Methods | Bank Transfer / PayPal / Western Union |
|---|---|
| Shipping Methods | DHL / FedEx |
