Original -replacement BLT Biolight Q5 Patient Monitor Main board MB350-V1.0 PN 13-100-0013
Original -replacement BLT Biolight Q5 Patient Monitor Main board MB350-V1.0 PN 13-100-0013

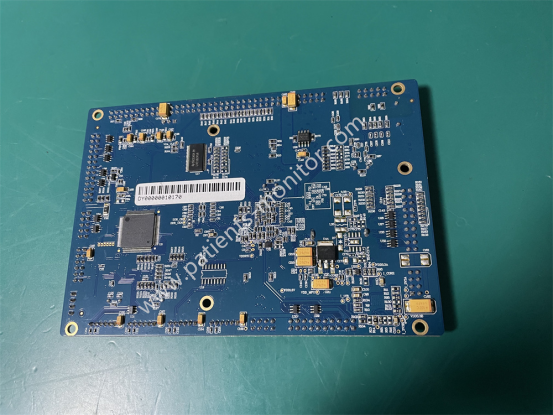

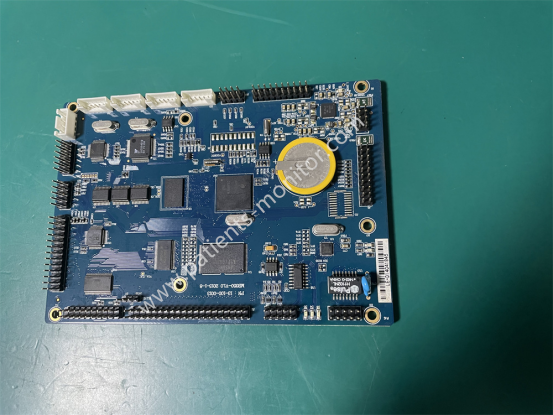

This is the motherboard of the Biolight Q5 Patient Monitor, marked with part number 13-100-0013. The motherboard is one of the most important components of the Q5 monitor, controlling the operation of all other components. Therefore, it has multiple connectors to connect to various critical components such as the power board, display screen, and parameter board.
This motherboard is an original Q5 monitor motherboard, used but tested by professional engineers and still functional (contact us for a test video). It can be used as a replacement for a faulty motherboard, is affordable, highly compatible, and offers excellent value.
Main board Replacement
1. The first step in replacing the motherboard is to disconnect all power to the device and shut it down. Then, remove the device's casing.
2. Locate the motherboard and note the connection positions of all cables on it. Disconnect each cable one by one, and then remove the screws securing the motherboard at the four corners.
3. Secure the new motherboard, tighten the screws, and reconnect the cables.
4. Connect the device to power and turn it on. Perform functional tests and parameter calibrations. Once everything is correct, reassemble the device.
|
Product name |
Main board |
|
PN |
13-100-0013 |
|
Compatible machine |
BLT Q5 |
|
Material |
PCB board |
|
Color |
Green |
|
MOQ |
1pc |
|
Weight |
Light, about 250g |
|
Warranty |
90 days |
|
Condition |
Used, original |
Main board Maintenance
1. Regularly check motherboard connection cables for looseness to avoid poor contact leading to data anomalies or device malfunctions;
2. Keep the inside of the device clean to prevent dust accumulation from affecting motherboard heat dissipation and circuit operation;
3. Avoid subjecting the device to severe vibration or impact to prevent damage to motherboard components.
| Payment Methods | Bank Transfer / PayPal / Western Union |
|---|---|
| Shipping Methods | DHL / FedEx |
