BLT Biolight Q5 Patient Monitor Module Slot Wiring 11-056-0005 to Mainboard cable 15cm original tested
BLT Biolight Q5 Patient Monitor Module Slot Wiring 11-056-0005 to Mainboard cable 15cm original tested

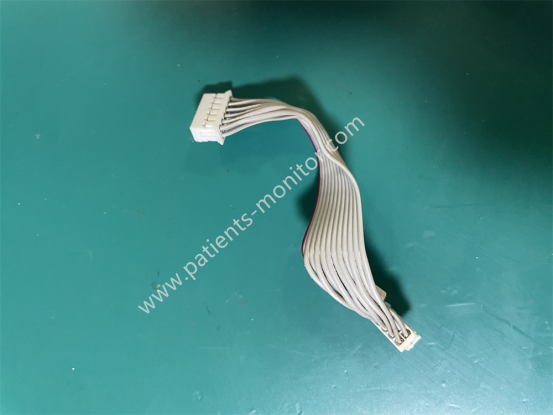

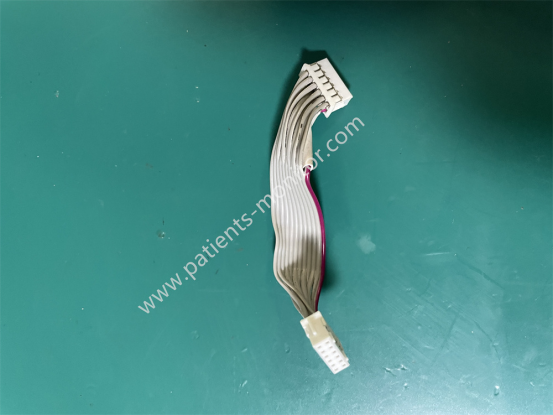

This is the connection cable between the module slot and the motherboard of the Biolight Q5 Patient Monitor. This cable was removed from a working Q5 monitor and is an original manufacturer cable. It is highly compatible with the original Q5 module slot and motherboard, providing accurate and stable outgoing transmission with minimal error. It is the ideal choice for original replacement cables and repair spare parts.
The cable surface is made of PVC material, which has insulating properties, making it safer to use. The cable length is approximately 15cm, sufficient to cover the distance between the internal slot and the motherboard without being too long to cause accumulation or tangling inside the device; the length is just right.
Routine Maintenance
1. Regularly inspect the cable's appearance for damage, aging, excessive bending, etc., and replace it promptly.
2. Clean the connector contacts with anhydrous alcohol to remove oxide layers and dust, ensuring good contact.
3. Prevent the cable from being exposed to liquids or disinfectants to avoid short circuits or insulation damage.
|
Product name |
Module Slot wiring |
|
PN |
11-056-0005 |
|
Compatible machine |
BLT Q5 |
|
Cable length |
15cm |
|
Material |
PVC |
|
Color |
White |
|
Condition |
Used / Original (Tested) |
|
Weight |
Light, about 50g |
|
Warranty |
90 days |
|
Delivery |
By DHL,FedEx |
Replacement Steps
1. Power off the device and disconnect the power supply to discharge static electricity (by touching a grounded metal object).
2. Open the monitor casing and locate the motherboard interface corresponding to the Q5I002 slot.
3. Disconnect the old wiring assembly and reconnect the new cable along the original path, ensuring it is secure.
4. Power on and test to check if module recognition and parameter transmission are normal.
5. Reassemble the casing.
