BLT Biolight Q5 Patient Monitor Module Slot Q5I002 PN 13-056-0002
BLT Biolight Q5 Patient Monitor Module Slot Q5I002 PN 13-056-0002
This is the module slot for the Biolight Q5 Patient Monitor, part number 13-056-0002. It's a used original accessory, compatible with the original Q5 monitor module, with a high degree of size matching.

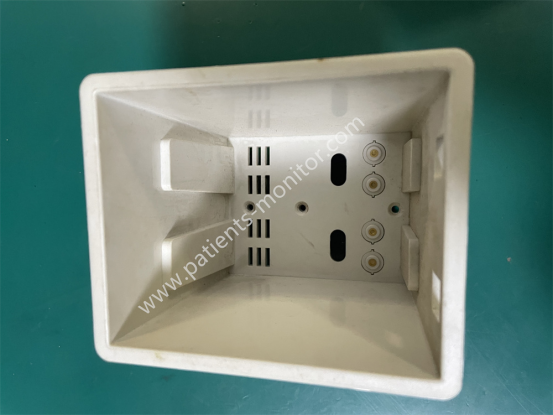

The slot features a recessed cavity design, its internal dimensions perfectly accommodating the original module. The bottom of the cavity has four metal contacts that interact with the contacts on the module. Corresponding ventilation grilles and cable connection holes are also designed on the bottom for easy connection and data transmission between the module and the internal circuit board. The cavity itself is made of white plastic, acting as a "protective shell" for the module. It secures the module internally, protects it from external impacts and damage, and is dustproof and waterproof, extending the module's lifespan.

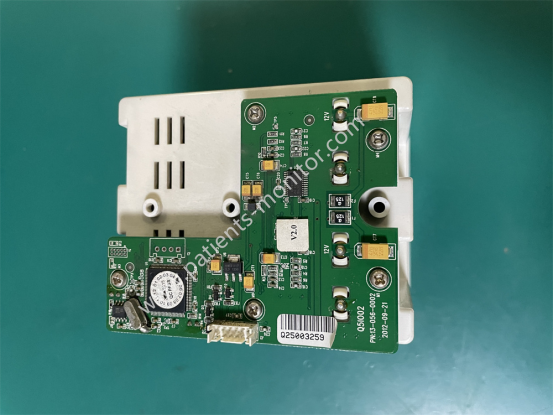

On the side of the cavity connecting to the device, there is also a circuit board. This circuit board connects to the Q5 monitor's parameter panel, amplifying, filtering, and converting the signals monitored by the module before transmitting them to the main board.
Product Features
1. Module Expansion
The Q5 monitor comes standard with two slots for this model, allowing connection to ECG, SpO2, NIBP, TEMP, IBP, EtCO2, and other modules. This enables flexible switching from basic to intensive care monitoring, meeting the parameter monitoring needs of different hospital scenarios.
2. Simplified Device Configuration
After module insertion, the motherboard automatically identifies the module model and loads the corresponding driver, eliminating the need for manual configuration and improving the efficiency of medical staff. Hot-swapping of modules is also supported, facilitating device maintenance and upgrades.
3. Stable Power Supply and Data Transmission
The slots feature built-in power distribution circuitry, providing a stable 12V power supply to the connected modules. Gold-plated contacts reduce contact resistance, ensuring high-speed, interference-free data transmission and preventing abnormal parameter fluctuations.
4. Module Protection
The module slots also provide physical protection for the modules, preventing impacts and protecting internal contacts from dust interference and damage.
|
Product name |
Module Slot |
|
PN |
13-056-0002 (Q5I002) |
|
Compatible machine |
BLT Q5 |
|
Material |
Plastic+PCB board |
|
Color |
White (Housing) / Green (PCB) |
|
Condition |
Used / Original (Tested) |
|
Weight |
Light, about350g |
|
Warranty |
90 days |
|
Delivery |
By DHL,FedEx |
