Biocare ECG-1210 ECG printer print head SHEC CH216-8087 1600 06230147 Replacement thermal printhead for ECG machine
Biocare ECG-1210 ECG printer print head SHEC CH216-8087 1600 06230147 Replacement thermal printhead for ECG machine

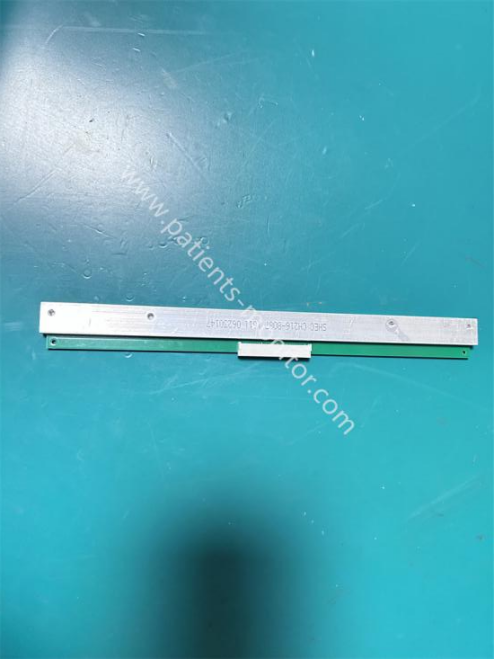

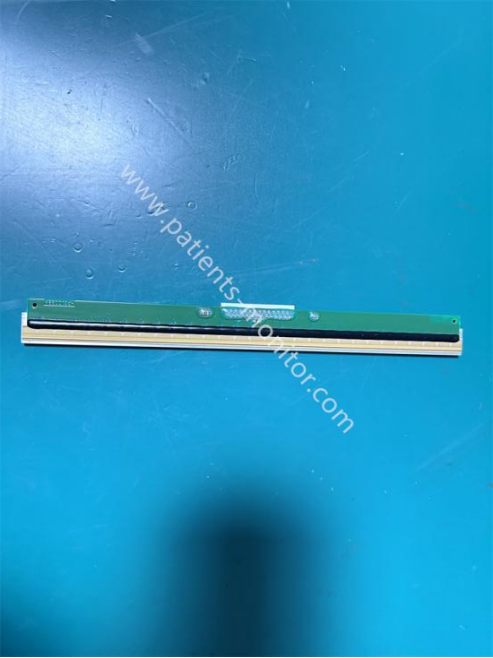

This is a medical device accessory—a thermal printhead—for use in electrocardiographs (ECG) machines, specifically designed for the ECG-1210 ECG machine. The printhead features a classic design with a PVB board and metal backplate, covered with gold-colored thermal heating dot matrix strips, supporting a printing accuracy of 8 dots per millimeter.
The printhead is elongated, approximately 216mm long, 15mm wide, and 8mm thick, weighing approximately 65g. Its dimensions are perfectly compatible with the ECG-1210 printer compartment.
The thermal printhead is the core imaging component of a thermal printer, responsible for converting ECG signals into clear paper waveform reports. It is a crucial component ensuring accurate output of clinical diagnostic reports. A white connector in the center of the printhead allows for cable connection to the printer control board, enabling power supply and signal control for the printhead.
Product Functions
1.Thermal Heating Printing
The print control board receives waveform data from the motherboard and controls the heating strip of the print head to generate clear ECG waveforms, values, and text information on thermal paper.
2. Temperature Closed-Loop Control
The print head has a built-in temperature sensor that monitors the heating strip temperature in real time, preventing overheating and damage to the print head or thermal paper, ensuring stable print quality.
3. Wide Print Width Adaptability
With a 210mm print width, it can print complete 12-lead synchronous waveforms, patient information, and diagnostic parameters, meeting the needs of clinical reports.
|
Product Name |
Print head |
|
PN |
SHEC CH216-8087 1600 06230147 |
|
Machine model |
ECG-1210 |
|
Size |
216mm*15mm*8mm |
|
Weight |
About 65g |
|
Material |
Metal+PCB |
|
Voltage |
DC 12V |
|
Shipping time |
7-15 days |
|
Delivery |
By DHL,FedEx etc |
FAQ
Q1: If the printhead is blurry or has missing lines, do I need to replace it?
A1: First, check the printhead surface for stains or paper scraps. Clean it with a cotton pad. If the problem persists, check the heating element for wear or burn marks. If present, replace the printhead.
Q2: The printhead is unresponsive. What's wrong? How do I troubleshoot it?
A2: First, use professional tools to check if the printhead's power supply voltage is normal. Then check if the connection cables are loose. Finally, replace the printhead and see if the problem is resolved.
Q3: If a paper jam occurs during printing on an ECG printer, and the printing is abnormal after clearing the jam, what should I do?
A3: Check if the printhead's heating element is deformed and if there are any paper scraps inside the printer. After cleaning these areas, recalibrate the distance between the printhead and the pressure roller.
| Payment Methods | Bank Transfer / PayPal / Western Union |
|---|---|
| Shipping Methods | DHL / FedEx |
Get in Touch
Have questions about our products or want to discuss a custom order? Our team is ready to help you.
