BLT Q5 Bedside Monitor Alarm Indicator Board 13-056-0008 Q5LED02 Assembly Spare Parts for Hospital Machine

BLT Q5 Bedside Monitor Alarm Indicator Board 13-056-0008 Q5LED02 Assembly Spare Parts for Hospital Machine

Description

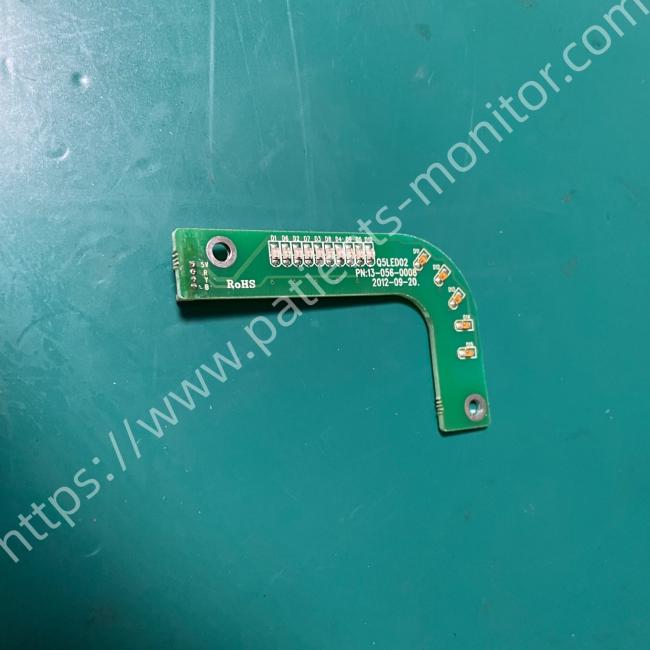

The alarm indicator board of the BLT Q5 monitor is designed with 10 LED lights, which can emit bright enough light to attract the attention of medical staff whether it is day or night, so as to promptly check the patient's health status.

Features:

1. When abnormal physiological parameters of the patient are detected, the lights of different colors on the indicator board will flash, and at the same time, the combined speaker will emit a "beep" alarm sound to ensure that the attention of medical staff can be attracted in various environments (such as dim light or noisy).

2. Multi-level alarm and color coding:

- Red represents critical, indicating that the patient's vital signs are in an extremely dangerous situation and require immediate treatment.

- Yellow means normal, indicating that the parameters are outside the preset range or there is a situation in the device that requires attention (such as lead wires falling off, electrode pads in poor contact, battery power is low, etc.).

- Green/blue usually means the device is operating normally or in standby mode.

Installation Steps:

- Power off: The monitor must be disconnected from the power supply to prevent static electricity from penetrating the circuit board.

- Disassembly: To disassemble the host shell, you usually need to unscrew the screws on the back or bottom.

- Connect the cable: Find the flat cable (FPC) that connects the alarm indicator board and the main control board, align it with the card slot and tighten it gently.

- Fixing: Fix the indicator board on the reserved slot or bracket on the chassis.

- Test: After installation, power on, and test whether the indicator light and buzzer are working normally by triggering the alarm (such as unplugging the blood oxygen probe).

Note: Please wear an anti-static bracelet and have a professional engineer perform the operation to avoid damaging the machine.

Warranty

Warranty period: 90 days

We provide warranty for both new and used equipment. Different equipment has different warranty periods. You can contact us to check the warranty details.

Delivery Details

Express delivery method: DHL, FedEx, UPS, etc.

Once payment is completed, we will immediately deliver the product to you quickly and safely. And the delivery date is about 3-5 working days, the shipping cost depends on your country and region.

If your delivery date is longer than expected, or you want to know the shipping details, you can contact us at any time.

Quality

Whether it is new equipment or old equipment, our engineers will conduct a comprehensive inspection before arranging delivery, and we have a 3 month warranty period, so you can purchase with confidence.

Warning

1. It's must use the correct electrical outlet to avoid damage or malfunction.

2. Try to avoid long-term storage, especially in high temperature and high humidity environments.

3. Do not use high-temperature, high-pressure vapour or ionizing radiation as disinfection methods.

4. Do not use chloric disinfectant such as chloride, sodium hypochlorite etc.

5. Please keep it away from water and fire.

We also provide other medical equipment and accessories. If you have any other needs or any questions about this product, please feel free to contact us, we will reply you as soon as possible.
