EDAN F2 Fetal Monitor Power Board Battery Interface Board Connection Cable 01.13.17570
EDAN F2 Fetal Monitor Power Board Battery Interface Board Connection Cable 01.13.17570
This is the connection cable between the power board and battery interface board of the Edan F2 fetal heart monitor. The cable is marked with part number 01.13.17570 for easy identification by maintenance personnel.

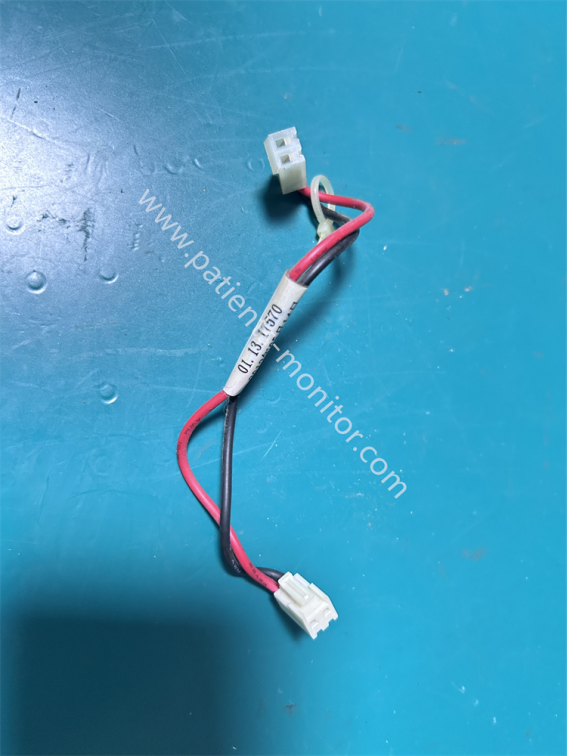

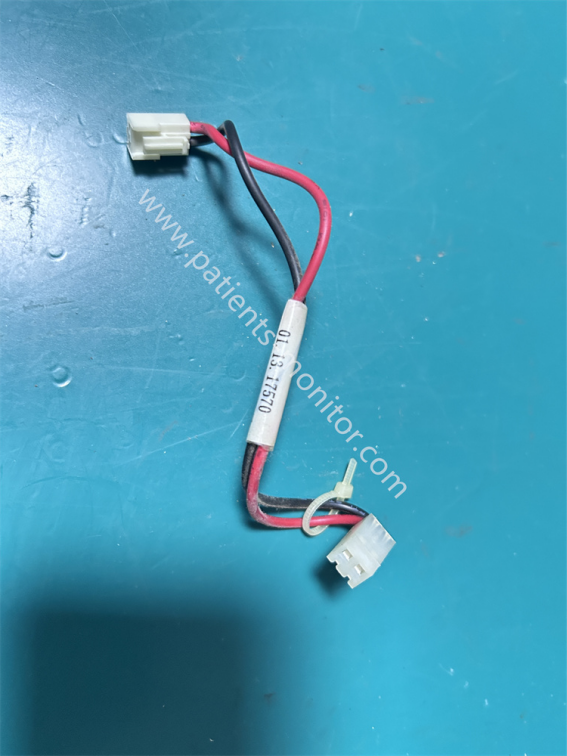

Cable 01.13.17570 is a black and red dual-core cable, approximately 20cm long. Both ends have 2-pin white keyed connectors, connecting to the power board and battery interface board respectively. The connectors at both ends have positioning clips to ensure precise alignment with the interfaces on the power board and battery interface board, preventing short circuits caused by reverse insertion. The cable has a curved design for easy routing within the device and to avoid compressing other components.
Functional & Advantages
1. Power Transmission
The cable transmits DC power from the battery to the power board, which then converts the power to power various components, driving the display, keyboard, etc.
2. Foolproof Design
The positioning clips at both ends of the socket effectively prevent reverse insertion, avoiding damage to the power board or battery due to incorrect polarity.
3. High Durability
The outer layer of the cable is made of PVC material, which not only provides insulation but also has excellent anti-aging properties. The internal conductor uses a multi-strand copper core design, offering extremely high bending resistance and withstanding vibrations during equipment movement, making it less prone to breakage or poor contact.
|
Product name |
Cable |
|
PN |
01.13 .17570 |
|
Machine model |
F2 fetal monitor |
|
Type |
Monitor parts |
|
Material |
PVC |
|
Color |
Black/Red |
|
Warranty |
90 days |
|
MOQ |
1 Piece |
|
Cable length |
20cm |
|
Weight |
About 10g |
FAQ
Q1: The battery is working properly, but there's no power. What could be causing this?
A1: This could be due to several reasons, such as a loose cable, a faulty power board, or a faulty battery interface board. First, check if the cable is loose and try unplugging and replugging it. If the problem persists, check the power board or battery interface board and replace any faulty components.
Q2: What could be causing severe overheating at the cable interface?
A2: First, check if the cable interface contacts are oxidized or damaged. If they are normal, check if poor contact is caused by high current. If the cable contacts are damaged, replace the cable or the interface board.
Q3: If the cable is damaged or the insulation is cracked, should the cable be replaced?
A3: Yes, if the cable is damaged or the insulation is cracked, it should be replaced immediately to avoid the risk of electrical leakage.
