Original Edan F2 Fetal Monitor Power Supply Board - Ms1r-112195-V1 Ready To Install
Original EDAN F2 Fetal Monitor Power Supply Board - MS1R-112195-V1 Ready to Install
This is the original power board for the Edan F2 fetal heart monitor. This power board is a separately sold accessory removed from the F2 monitor. Before being disassembled, it underwent professional testing to ensure proper functioning. Please contact us if you require a test video.

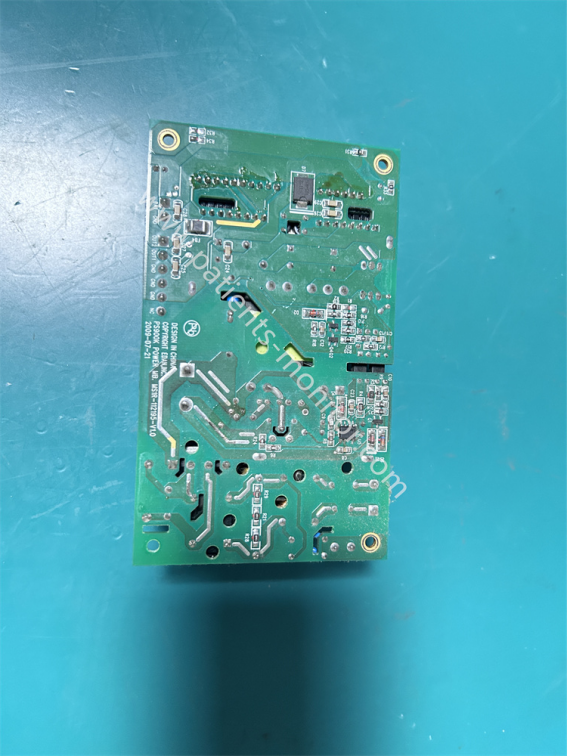

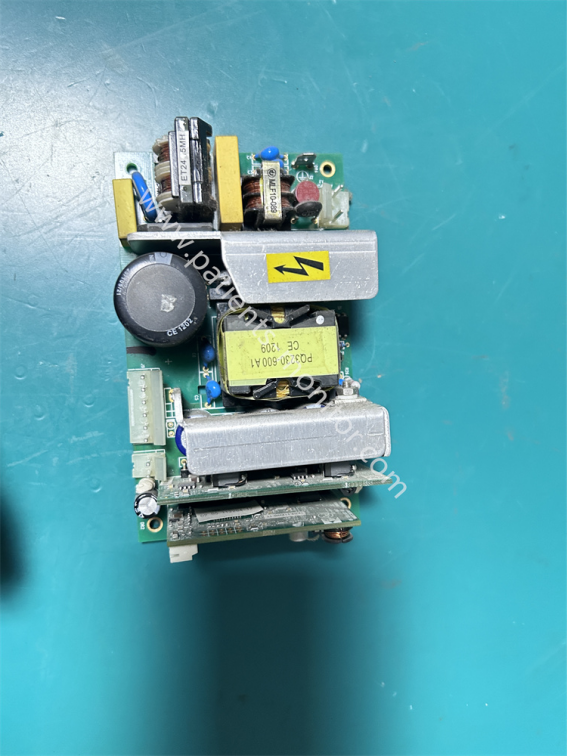

The power board primarily uses a PCB board as its base. The front panel houses capacitors, transformers, and other components, as well as white sockets for connecting the motherboard and battery interface board. The model number "MS1R-112195-V1" and safety certification markings are printed on the power board's detailed image, facilitating quick identification and traceability during repairs.
Functional & Advantages
1. Stable Power Supply: The power board converts the AC power from the F2 monitor or the battery power into stable voltages (e.g., 12V, 5V, 3.3V) required by all components such as the motherboard, screen, and printer, allowing the device to monitor normally.
2. Safety Protection: The power board has built-in overvoltage, overcurrent, overheat, and short-circuit protection. In the event of an abnormality, it automatically cuts off the output to prevent damage to the equipment or safety risks.
3. High-Efficiency Conversion: Utilizing switching power supply technology, the power conversion efficiency is very high, reducing heat generation and making the device more energy-efficient and stable.
4. Battery Management: The power board also manages the charging and discharging of the F2 monitor's battery, ensuring seamless switching between plugged-in and battery modes, and guaranteeing continuous operation even when the device is moved or powered off.
|
Product name |
Power Board |
|
PN |
MS1R-112195-V1 |
|
Machine model |
F2 fetal monitor |
|
Type |
Monitor parts |
|
Material |
PCB board/Metal |
|
Color |
Green |
|
Warranty |
90 days |
|
MOQ |
1 Piece |
|
Weight |
About 300g |
|
Delivery by |
Express |
Power Board Installation Steps
1. Disconnect all external power to the device; after 10 minutes, remove the outer casing and locate the old power board inside the device.
2. Disconnect all ribbon cables and interface connections on the power board, and record the location and wiring sequence of each interface.
3. Unscrew the four corner screws and remove the old power board.
4. Align the new power board with the screw holes, tighten the screws, and reconnect all wiring according to the recorded positions.
5. Power on and test. After confirming that all voltage outputs are normal and the device passes the self-test, reinstall the power board into the outer casing.
| Payment Methods | Bank Transfer / PayPal / Western Union |
|---|---|
| Shipping Methods | DHL / FedEx |
FAQ:
1. Are there any specific tests for the compatibility of accessories for portable ultrasound devices?
Yes. We conduct tests on the accessory's battery life compatibility and shock resistance to ensure they meet the mobility requirements of portable ultrasound devices.
2. Is the material hardness of the accessory consistent with that of the original component?
Yes, it is. The accessory is manufactured strictly according to the original specifications, featuring wear resistance and scratch resistance, with a service life identical to that of the original component.
3. What should I do if the component is prone to damage due to insufficient material hardness?
If component damage results from material issues, we will provide free repair or replacement services during the warranty period.
4. Can we provide an electronic version of the accessory and equipment compatibility commitment letter?
Yes. We can provide an electronic version for quick archiving or forwarding to relevant departments.
5. How long is the validity period of the Compatibility Commitment Letter?
The validity period of the commitment letter matches the accessory warranty period, which is 90 days, calculated from the date of shipment.
90 Day Warranty SGS ceryification
Get in Touch
Have questions about our products or want to discuss a custom order? Our team is ready to help you.
