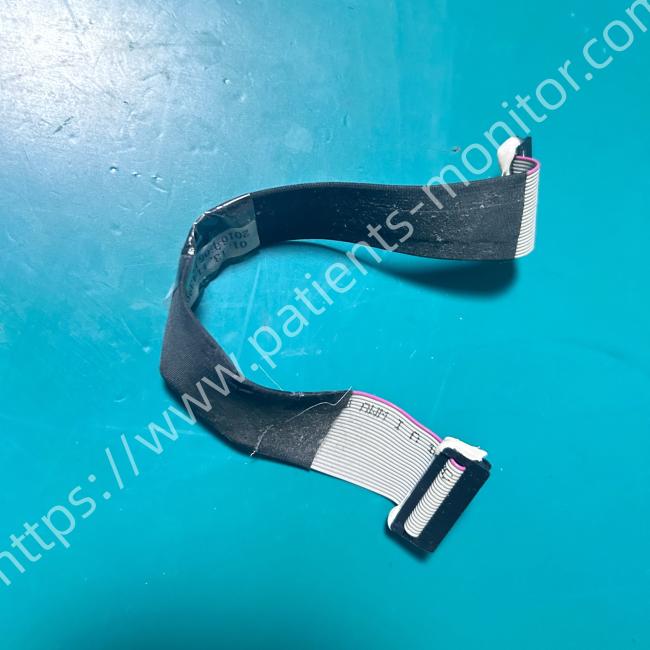

EDAN F300 Fetal Monitor Connecting Wiring Cable for Motherboard and Connection Board 01.13.114329

EDAN F300 Fetal Monitor Connecting Wiring Cable for Motherboard and Connection Board 01.13.114329

Description

Purpose:

- Data transmission: The analog or digital signals collected by the connection board from the sensor are stably and losslessly transmitted to the main board for processing, analysis and display.

- Power supply connection: Provide stable operating voltage for various electronic components on the mainboard or connection board.

- Control signal transmission: transmit control instructions issued by the motherboard, such as controlling the transmitting frequency of the probe, switching between different channels, etc.

Features:

- Anti-interference ability: The connecting cable is designed with a shielding layer to resist electromagnetic interference from other circuits inside the device or the external environment.

- Flexibility and durability: Using flexible flat cable (FFC) or flexible printed circuit (FPC), it saves space and is resistant to bending.

- Use wire-to-board connectors to ensure stable connections and easy production and maintenance.

How to replace the installation?

- Disconnect all power sources from the tire monitor and wear an anti-static bracelet when operating it.

- Unscrew the housing fixing screws and open the housing.

- Locate the connection cable between the motherboard and the connection board and carefully disconnect the cable.

- Plug the new cable into the motherboard and connector board.

- Perform a power-on test while ensuring safety. After the test is completed, combine the housing, tighten the fixing screws, and complete the installation.

Warranty

Warranty period: 90 days

We provide warranty for both new and used equipment. Different equipment has different warranty periods. You can contact us to check the warranty details.

Delivery Details

Express delivery method: DHL, FedEx, UPS, etc.

Once payment is completed, we will immediately deliver the product to you quickly and safely. And the delivery date is about 3-5 working days, the shipping cost depends on your country and region.

If your delivery date is longer than expected, or you want to know the shipping details, you can contact us at any time.

Quality

Whether it is new equipment or old equipment, our engineers will conduct a comprehensive inspection before arranging delivery, and we have a 3 month warranty period, so you can purchase with confidence.

Warning

1. It's must use the correct electrical outlet to avoid damage or malfunction.

2. Try to avoid long-term storage, especially in high temperature and high humidity environments.

3. Do not use high-temperature, high-pressure vapour or ionizing radiation as disinfection methods.

4. Do not use chloric disinfectant such as chloride, sodium hypochlorite etc.

5. Please keep it away from water and fire.

We also provide other medical equipment and accessories. If you have any other needs or any questions about this product, please feel free to contact us, we will reply you as soon as possible.
