Edan F200 Fetal Monitor Connecting Cable for Mainboard/Power Supply/Connection/Fetal Monitoring Board

Edan F200 Fetal Monitor Connecting Cable for Mainboard/Power Supply/Connection/Fetal Monitoring Board

Description

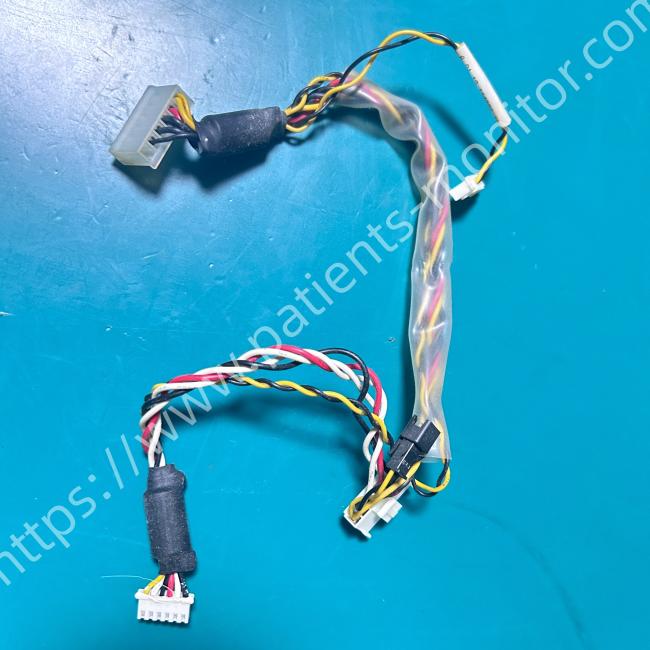

This connector cable is a multi-functional connector that can connect many circuit boards together. It is mainly used to connect the motherboard, power board, connection board, and fetal monitoring board. It is a replacement accessory for the Edan F200 fetal monitor.

The connecting cable transmits the low-voltage DC power converted by the power board to the main board and the fetal monitoring board. The main board can receive ultrasound Doppler signals, uterine contraction pressure data, and fetal movement marker signals from the fetal monitoring board through the connecting cable. After processing, these signals are displayed on the screen, and signals are sent to other circuit boards to control the operation of various parts. At the same time, it can transmit the weak echo signals captured by the ultrasound probe transducer to the fetal monitoring board for amplification and filtering.

Installation Instructions:

- Disconnect all power to the fetal monitor and wear an anti-static wrist strap throughout the operation.

- Unscrew the screws on the outer casing and gently pry it open using a plastic pry bar.

- Locate the connecting cables between the main board, power board, connector board, and fetal monitoring board, and carefully disconnect all interfaces.

- Insert the new connecting cables into the interfaces on the boards in their original positions.

- Perform a power-on test when it is safe to do so. Once the device is confirmed to be working properly, close the outer casing, tighten the screws, and the installation is complete.

Warranty

Warranty period: 90 days

We provide warranty for both new and used equipment. Different equipment has different warranty periods. You can contact us to check the warranty details.

Delivery Details

Express delivery method: DHL, FedEx, UPS, etc.

Once payment is completed, we will immediately deliver the product to you quickly and safely. And the delivery date is about 3-5 working days, the shipping cost depends on your country and region.

If your delivery date is longer than expected, or you want to know the shipping details, you can contact us at any time.

Quality

Whether it is new equipment or old equipment, our engineers will conduct a comprehensive inspection before arranging delivery, and we have a 3 month warranty period, so you can purchase with confidence.

Warning

1. It's must use the correct electrical outlet to avoid damage or malfunction.

2. Try to avoid long-term storage, especially in high temperature and high humidity environments.

3. Do not use high-temperature, high-pressure vapour or ionizing radiation as disinfection methods.

4. Do not use chloric disinfectant such as chloride, sodium hypochlorite etc.

5. Please keep it away from water and fire.

We also provide other medical equipment and accessories. If you have any other needs or any questions about this product, please feel free to contact us, we will reply you as soon as possible.
