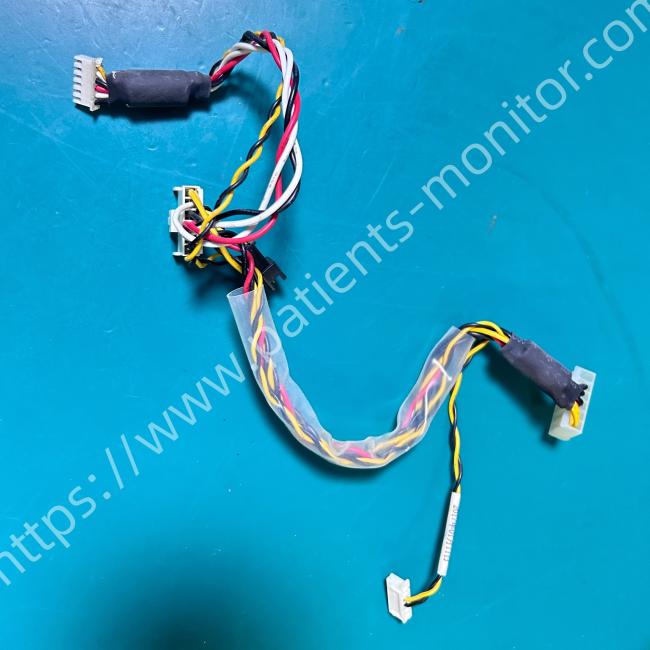

Edan F300 Fetal Monitor Connector Wiring Cable for Motherboard Power Supply Connection Fetal Monitor Board 01.13.114336-13

Edan F300 Fetal Monitor Connector Wiring Cable for Motherboard Power Supply Connection Fetal Monitor Board 01.13.114336-13

Description

Power board connection cable: Responsible for converting the externally input 220V AC power into the low-voltage DC power required by the equipment. This stable DC power is then distributed to the main board and probe board via the connection cable to power the equipment operation.

Fetal monitoring board connection cable: transmits the weak fetal heart rate signal and uterine contraction pressure signal captured by the probe to the main board for processing without loss.

Connection cable between mainboard and connection board: Enables data exchange between the motherboard and external interfaces, and is responsible for controlling external devices and detecting input from the panel buttons.

Easy to Install:

1. Disconnect the device from the power supply and wear an anti-static wrist strap while operating.

2. Unscrew the screws on the outer casing and carefully separate the casing.

3. Locate the connecting cables between the main board, power board, connector board, and tire monitoring board. Take a photo to record the original interface locations and carefully disconnect the connecting cables.

4. Connect the new connecting cables according to the original interfaces.

5. Power on and test. After the test is successful, close the outer casing, reconnect the screws, and complete the installation.

Warranty

Warranty period: 90 days

We provide warranty for both new and used equipment. Different equipment has different warranty periods. You can contact us to check the warranty details.

Delivery Details

Express delivery method: DHL, FedEx, UPS, etc.

Once payment is completed, we will immediately deliver the product to you quickly and safely. And the delivery date is about 3-5 working days, the shipping cost depends on your country and region.

If your delivery date is longer than expected, or you want to know the shipping details, you can contact us at any time.

Quality

Whether it is new equipment or old equipment, our engineers will conduct a comprehensive inspection before arranging delivery, and we have a 3 month warranty period, so you can purchase with confidence.

Warning

1. It's must use the correct electrical outlet to avoid damage or malfunction.

2. Try to avoid long-term storage, especially in high temperature and high humidity environments.

3. Do not use high-temperature, high-pressure vapour or ionizing radiation as disinfection methods.

4. Do not use chloric disinfectant such as chloride, sodium hypochlorite etc.

5. Please keep it away from water and fire.

We also provide other medical equipment and accessories. If you have any other needs or any questions about this product, please feel free to contact us, we will reply you as soon as possible.
