EDAN F200 Fetal Monitor Mainboard to Display Board Wiring
EDAN F200 Fetal Monitor Mainboard to Display Board Wiring

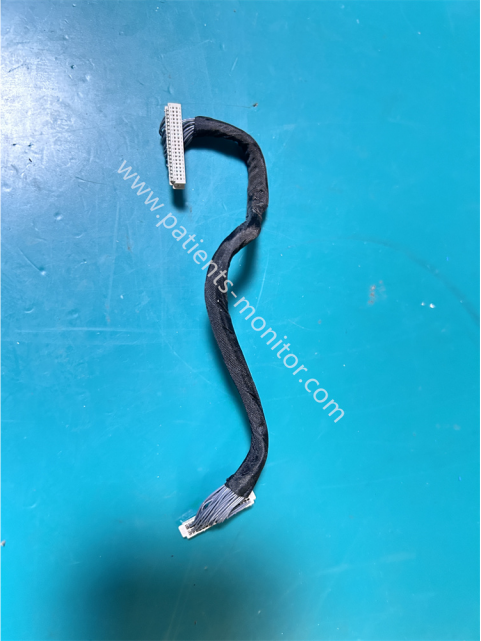

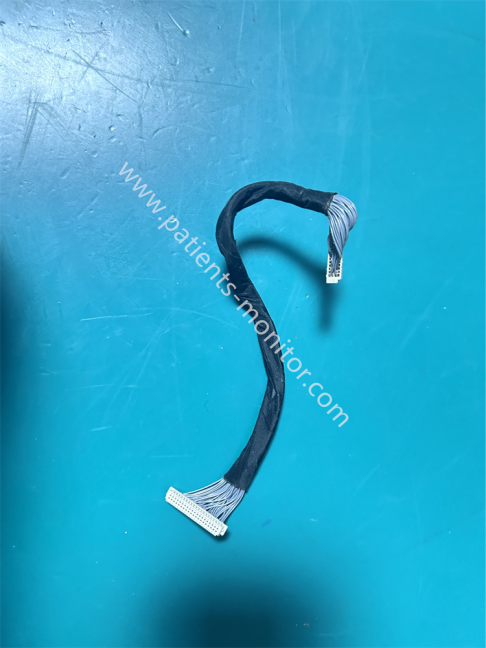

This is the internal connection cable for a fetal heart rate monitor. The cable is approximately 15cm long, entirely black, and unmarked. Each end has a short section for connecting to the mainboard and display board, respectively, transmitting signals between them.
The cable is wrapped in a layer of black flame-retardant braided fabric. This fabric primarily resists signal interference, while also providing abrasion resistance and insulation, resisting bending and extending the cable's lifespan.
Functional & Advantages
1. Signal and Power Transmission: Responsible for transmitting video signals, control commands, and power supply between the mainboard and display board, ensuring the screen can display fetal monitoring waveforms, parameters, and menus correctly.
2. Anti-interference Design: The black braided outer layer and flat ribbon cable structure effectively suppress electromagnetic interference generated by the internal motors and power modules, ensuring stable signal transmission and clear display.
3. High Reliability: The cable uses a multi-strand copper core design to improve bending resistance, and the pin plating prevents oxidation, reducing the risk of poor cable contact.
4. Ease of Maintenance: The modular cable design allows for quick location and replacement of the cable in case of display abnormalities, screen flickering, or no display, without disassembling the motherboard or display board.
|
Product name |
Wiring |
|
Model |
F200 |
|
Brand |
Edan |
|
Cable length |
About 15cm |
|
Color |
Black |
|
Material |
Nylon+PVC |
|
Warranty |
90 days |
|
MOQ |
1 piece |
|
Delivery by |
Express, air |
Cable Replacement and Maintenance
1. Signal and Power Transmission: Responsible for transmitting video signals, control commands, and power supply between the mainboard and display board, ensuring the screen can display fetal monitoring waveforms, parameters, and menus correctly.
2. Anti-interference Design: The black braided outer layer and flat ribbon cable structure effectively suppress electromagnetic interference generated by the internal motors and power modules, ensuring stable signal transmission and clear display.
3. High Reliability: The cable uses a multi-strand copper core design to improve bending resistance, and the pin plating prevents oxidation, reducing the risk of poor cable contact.
4. Ease of Maintenance: The modular cable design allows for quick location and replacement of the cable in case of display abnormalities, screen flickering, or no display, without disassembling the motherboard or display board.
| Payment Methods | Bank Transfer / PayPal / Western Union |
|---|---|
| Shipping Methods | DHL / FedEx |
