BLT Biolight M66 Patient Monitor Alarm Indicator Panel Assembly M9500LED01
BLT Biolight M66 Patient Monitor Alarm Indicator Panel Assembly M9500LED01
This is an alarm indicator panel assembly for the Biolight M66 patient monitor. The part number is M9500LED01. It's an original part salvaged from used equipment, suitable for replacement during equipment repairs, and highly compatible with other original equipment manufacturer (OEM) parts.

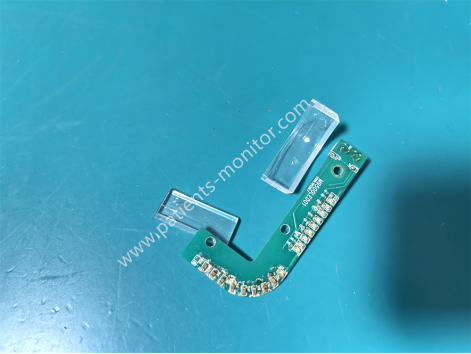

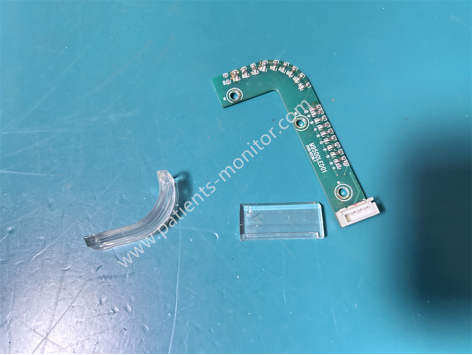

This alarm indicator panel is an L-shaped circuit board with the part number M9500LED01 printed on it for identification during repairs and replacements. The board has three pre-drilled screw holes for securing the panel inside the device. In addition, the panel features multiple LEDs that flash different colors depending on the settings when monitored values exceed preset thresholds, alerting medical staff to handle emergencies promptly.
It comes with two transparent PC material light guide covers to protect the LEDs and prevent light scattering.
Features
1. Visualized Alarm Signals
Different colored LED lights visually indicate the alarm status of the monitor, combined with audible alarms, improving clinical early warning efficiency.
2. Uniform Alarm Lighting
The light guide diffuses the LED light source evenly, ensuring clear visibility of the alarm light even in distant environments such as wards and nurses' stations, making it particularly suitable for visual early warning in noisy environments.
3. Synchronized Status Display
The alarm indicator panel is completely synchronized with the monitor screen and audible alarms: the lights respond immediately when parameters are abnormal and turn off when parameters return to normal, ensuring consistent alarm information.
4. Low Power Consumption and Long Lifespan
Using surface-mount LEDs, the power consumption is extremely low, not increasing the power burden on the equipment; at the same time, the LED lifespan can reach tens of thousands of hours, almost matching the lifespan of the equipment, reducing frequent replacements.
|
Product name |
Alarm Indicator Panel Assembly |
|
PN |
M9500LED01 |
|
Model |
M66 |
|
Type |
Patients monitor machine |
|
Material |
PCB board |
|
Color |
Green |
|
Warranty |
90 days |
|
MOQ |
1 piece |
|
Lead time |
3-5 days |
|
Delivery by |
DHL, air |
FAQ
Q1: The alarm light isn't on, but the audible alarm works normally. Is this a problem with the panel?
A1: If all the connections are normal, without looseness or oxidation, it's most likely a problem with the panel itself. Check if the light guide is obstructing or has fallen off. Check if the LEDs on the panel are burnt out; if so, the panel needs to be replaced. If all of the above are normal, it may be a problem with the mainboard control signal.
Q2: Is this M9500LED01 alarm light panel compatible with other Biolight monitor models?
A2: No. Alarm light layouts and interface sizes differ between models. You must use the specific model for your monitor; otherwise, it may cause abnormal light display or installation problems.
Q3: The light guide is yellowed/cracked. Can it be replaced individually, or does the entire panel need to be replaced?
A3: The light guide has a snap-on design and can be replaced individually. If the LEDs or PCB board are damaged, the entire panel assembly needs to be replaced.
