Interface Board M9500SOPA01 for BLT M66

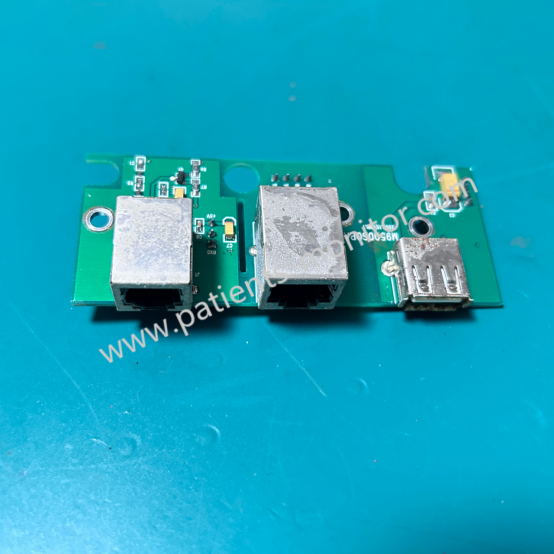

Biolight BLT M66 Patient Monitor USB Network Interface Board M9500SOPA01

► Brief Description

The Biolight M66 Patient Monitor integrates multiple interfaces, including crucial USB and Ethernet (NIC) ports. These are not merely physical ports, but rather the core hubs enabling data exchange, telemedicine, and efficient workflows. The Biolight M66's interface design fully considers the high-intensity use in hospitals, featuring foolproof and ruggedized designs, easy-to-clean surfaces, and status indicator lights. With its robust interface configuration, the Biolight M66 not only meets current clinical monitoring needs but also reserves ample space for future telemedicine and data-driven management.

► USB Interface

This interface was designed to address the challenges of data export and poor peripheral compatibility in clinical environments.

1. Efficient Data Export and Backup: The Biolight M66's USB interface supports plug-and-play functionality, allowing medical staff to directly insert a USB drive into the monitor. Trend tables and waveform data from the past 24 hours or a specific time period can be directly exported to a universal format for viewing on an office computer.

2. Peripheral Compatibility and Function Expansion: This USB interface also provides power supply and data communication capabilities, supporting various medical peripherals. For example, it supports laser/thermal printer connections and barcode scanners (for rapid patient information entry).

► Network Interface

1. Stable Network Connection: The Biolight M66's network port design adheres to medical-grade shielding standards, effectively resisting electromagnetic interference from equipment such as MRI and CT scanners, ensuring stable and uninterrupted data transmission even in noisy electromagnetic environments.

2. System Integration and Remote Management: Seamlessly integrates with hospital HIS or EMR systems. Patient vital signs data are automatically archived into electronic medical records. Biomedical engineers can remotely upgrade firmware or troubleshoot the device via the network.

► Interface Board

The Biolight M66's interface circuit board boasts exceptional durability.

1. Gold Plating: All external interface pads and connector pins are gold-plated, offering strong oxidation resistance and ensuring extremely low contact resistance even after prolonged insertion and removal.

2. High Temperature and Vibration Resistance: The PCB is made of high-quality materials, capable of withstanding the heat generated during long-term operation. It is securely locked to the chassis's metal frame, resisting continuous vibration during equipment movement or transport.

3. Electromagnetic Compatibility Shielding: Encased in a metal shielding cover, it creates a Faraday cage effect, effectively blocking external radio frequency interference.
