Nihon Kohden ECG-1350P ECG machine battery interface wiring spare part


► Brief Description

The Nihon Kohden ECG-1350P ECG machine battery interface wiring is white, made of a plastic casing, and is a multi-pin female connector with a reverse-insertion protection structure to ensure correct installation. Internally, the battery interface wiring connects to the main power management circuit board. When the ECG is connected to AC power, the internal charging circuit charges the battery pack through this interface. When AC power is disconnected, the battery supplies power to the ECG through the interface. The main unit reads the battery temperature via a temperature sensing pin and pauses charging when the temperature exceeds the safe range.

► Specifications

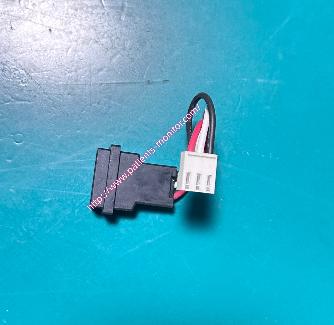

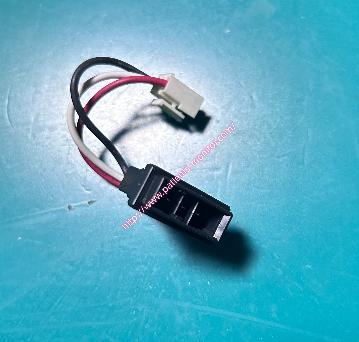

►Detailed Photos


 ►Wiring Steps:

1. Open the battery compartment cover and remove the old battery.

2. Confirm that the new battery's connector type matches the old battery's.

3. Check that the connector pins are intact, without bending or oxidation.

4. Align the new battery connector with the main unit's battery connector, ensuring correct orientation.

5. Apply even pressure and push the connector in until it clicks into place, indicating a secure connection.

6.Place the battery back into the battery compartment and close the cover.

►Warning

1. Any repair work involving internal wiring or interfaces of the main unit should be performed by a qualified medical device repair engineer.

2. All power to the main unit (including AC power and batteries) must be disconnected before operation.

3. Use insulated tools to prevent accidental short circuits.

4. Avoid performing wiring operations in humid environments.

Thank you for taking your time on our Nihon Kohden ECG-1350P ECG machine battery interface wiring, if you have any questions, please feel free to contact us.
