Nihon Kohden ECG-1350P Electrocardiograph (ECG/EKG Machine) Printer Motor Gear Assembly PFC42T-48271G
Printer Motor for ECG-1350P
Nihon Kohden ECG-1350P Electrocardiograph (ECG/EKG Machine) Printer Motor Gear Assembly PFC42T-48271G
► Brief Description
The Nihon Kohden ECG-1350P electrocardiograph features a built-in thermal array printer, capable of outputting up to 12 channels of ECG waveforms on 210mm wide paper. The PFC42T-48271G Motor Gear Assembly is one of the core mechanical components of this 12-channel automatic analysis ECG machine, directly determining paper feed smoothness and print quality.
Our motor assembly has been professionally tested to ensure optimal performance and compliance with safety requirements. It is the ideal replacement for your needs.

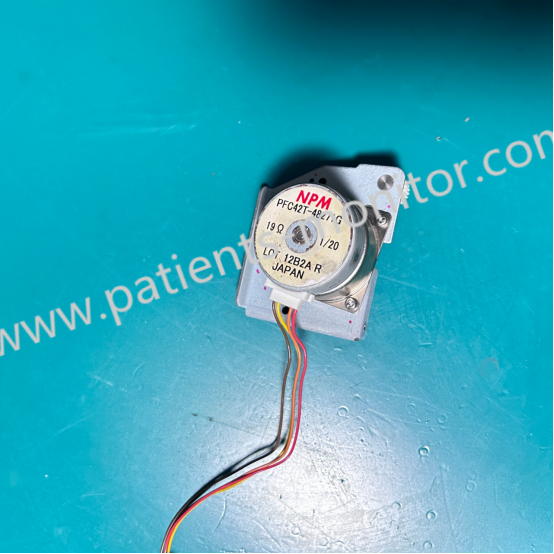

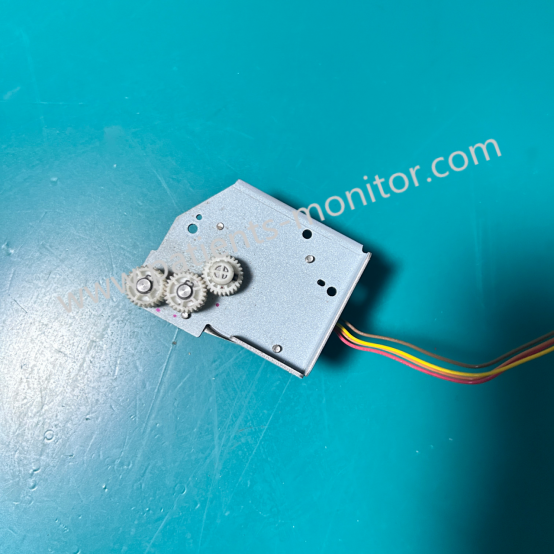

► Detailed Photos
► Specification
| Recording speed accuracy | ≤±5% |
| Printing density | 200 dpi(8 dots/mm), 320 dots/mm²(25 mm/s) |
| Scanning line density | 1 ms |
| Number of recording channels | 3, 4, 6, 12 |
| Paper speed | 5, 10, 12.5, 25, 50 mm/s |
| Recording paper | 210 mm width, 30 m long Z fold |
| Mechanical noise | ≤48 dB at paper speed 5, 10, 12.5, 25 mm/s |
► Common Faults
If your device exhibits the following faults, it may indicate a problem with the Printer Motor Gear Assembly PFC42T-48271G, requiring inspection and replacement:
* Uneven paper feed speed: The printed waveform shows obvious stretching, compression, or breakage.
* Abnormal noise: The device emits a "clicking" gear grinding sound during standby or printing.
* Paper jams or failure to feed: The motor runs but the paper cannot be fed, or paper jams occur frequently.
► Maintenance
When using your Nihon Kohden ECG-1350P ECG machine, please pay attention to the following:
1. Regular Cleaning: Use a dedicated thermal printhead cleaning pen to regularly clean the printhead and surrounding area of paper scraps and dust to prevent foreign objects from obstructing motor transmission.
2. Using Genuine Consumables: Always use long-life thermal paper that meets specifications. Inferior paper may increase the motor load and shorten component lifespan.
3. Professional Inspection: If you experience obvious mechanical noise or abnormal paper feeding, contact a professional medical device repair technician immediately to inspect the motor drive circuit and mechanical gear structure.
Thanks for your interest in Nihon Kohden ECG-1350P Electrocardiograph (ECG/EKG Machine) Printer Motor Gear Assembly PFC42T-48271G, please feel free to contact me. Thank you for your time and wish you have a happy life.
90 Day Warranty SGS ceryification
