Philiph TC10 ECG Machine Battery Board 453564402661 453564402671





► Brief Introduction

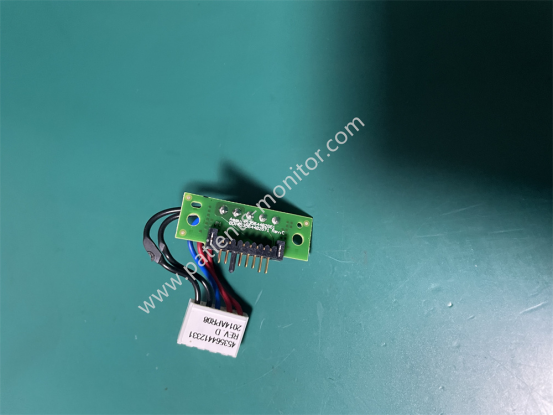

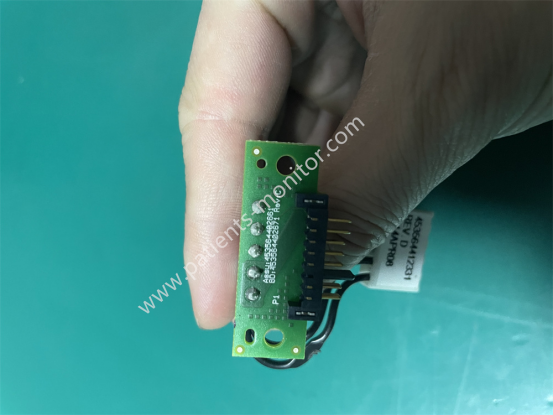

This is the battery interface board for the Philiph TC10 ECG machine. This board is a salvaged part from the TC10 machine and is an original manufacturer part. Part numbers 453564402661 and 453564402671 are compatible with original batteries. The battery interface board is installed at the bottom of the battery compartment and includes a cable and a small PCB board. The cable connects to the machine's main board, and the PCB board has contacts for connecting to the battery's contacts, enabling power transfer and signal exchange between the battery and the main board. It also handles the transmission of battery status and related signals.


► Features

1. Battery Power Transmission: The battery board has a built-in cable that transmits battery power to the main board and distributes it to various critical components for normal operation of the machine.

2. Battery Status Recognition

The battery interface board's cables not only transmit power but also transmit battery feedback signals to the motherboard, such as low battery warnings and battery fault codes, ensuring normal communication between the battery and the motherboard.

3. Electrical Protection and Foolproof Design

The battery interface board features a built-in reverse connection protection circuit to prevent damage to the device's motherboard caused by incorrect battery insertion. The interface has a foolproof positioning feature, preventing incorrect insertion during installation and physically eliminating the risk of accidental operation, ensuring the safety of both the device and the battery.

4. Easy Installation

This interface board is specifically designed for the Philiph TC10 model. The PCB size and interface pins are 100% compatible. Installation is simple: just replace the board without additional debugging or calibration, quickly restoring the device's power supply function.


► Parameters




► Product Picture





►FAQ


Q1: Can I repair a bent pin on the battery interface board?

A1: Repair is not recommended. The pins are gold-plated, requiring soldering for repair, which is difficult and prone to problems such as poor contact after repair. It is recommended to replace the entire interface board to avoid repeated failures.

Q2: The device displays "Battery cannot be charged." Is this related to the interface board?

A2: Yes. The interface board is responsible for transmitting charging signals. If the charging circuitry on the interface board is damaged, the device will not be able to charge the battery even if the charger is working properly.

Q3: Do I need special tools to replace the interface board? Can I install it myself?

A3: Installation is very simple. Just tighten the screws with a screwdriver and then plug the connectors at both ends firmly. No special tools or soldering are required. Medical or repair personnel can quickly complete the replacement.

90 Day Warranty                             SGS ceryification
