Philiph TC10 ECG machine display panel 453564384321 453564384311



► Brief Introduction


These are original, used display panel interface boards for the Philiph TC10 ECG machine. The part numbers for these boards are 453564384321 and 453564384311.

The display panel interface board is one of the components connecting the display screen. Made of a green PCB board, it is specifically designed for the internal space of the TC10, with a compact size. The front panel has multiple interface positions to ensure it can receive relevant signals from the display screen and the motherboard.

The display panel interface board has four circular holes for secure mounting inside the device, ensuring stable operation.


► Features

1. Transmitting Display Signals

This display panel interface board connects the motherboard and the display screen. It converts the ECG waveform and other data transmitted from the motherboard into the video signals required by the display screen, ensuring a clear and smooth display and avoiding display abnormalities caused by signal interference.

2. Backlight Driver and Brightness Control: The display panel interface board integrates a backlight driver circuit, providing a stable backlight power supply to the screen and supporting brightness adjustment. This ensures clear display in various lighting conditions and extends the lifespan of the screen backlight.

3. Button Interaction Signal Transmission: The display panel interface board also connects to the front panel button board, transmitting medical staff's button operation signals to the mainboard. This enables functions such as menu switching and parameter setting, ensuring sensitive device operation response.

4. High Compatibility: This display panel interface board is an original manufacturer's TC10 accessory, highly compatible with the original mainboard and display screen. It can be purchased as a spare part to replace faulty components without additional debugging, reducing the failure rate.


► Parameters

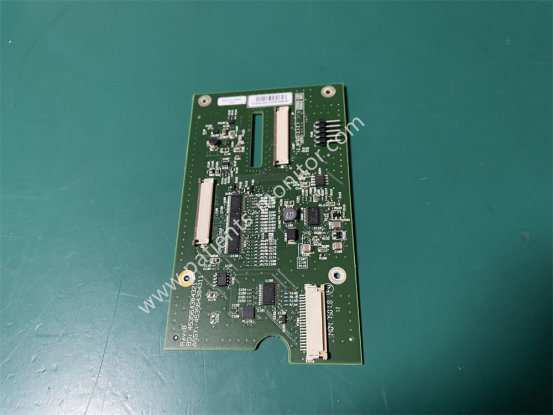

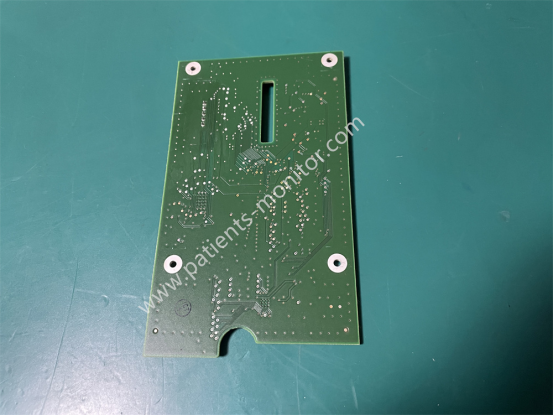

► Product Picture





►FAQ


Q1: My screen is displaying a distorted image, indicating interference. Is this related to the interface board?

A2: Yes. Damage to the signal receiving components on the interface board can cause abnormal signal transmission, resulting in distorted images, stripes, and screen flickering. After ruling out cable and screen faults, replacing the interface board can resolve the issue.

Q2: Does replacing this interface board require soldering? Can I do it myself?

A2: No soldering is required. Replacement can be completed simply by plugging and unplugging the ribbon cable and fixing screws. Repair personnel or technicians with basic skills can operate quickly without specialized soldering tools.

Q3: What are the steps for replacing the display panel interface board?

A3: First, disconnect the power to the device and wait about 10 minutes before disassembling the device's casing. Locate the interface board, label the power connections, and disconnect them one by one. Remove the old interface board and install the new interface board in the original connection positions. Power on the device to check if the interface board functions properly. Finally, reassemble the casing.
