EDAN Cadence II Fetal Monitor Connector Wiring Between Mainboard with Power Supply Board 01.13.17568

EDAN Cadence II Fetal Monitor Connector Wiring Between Mainboard with Power Supply Board 01.13.17568

Description

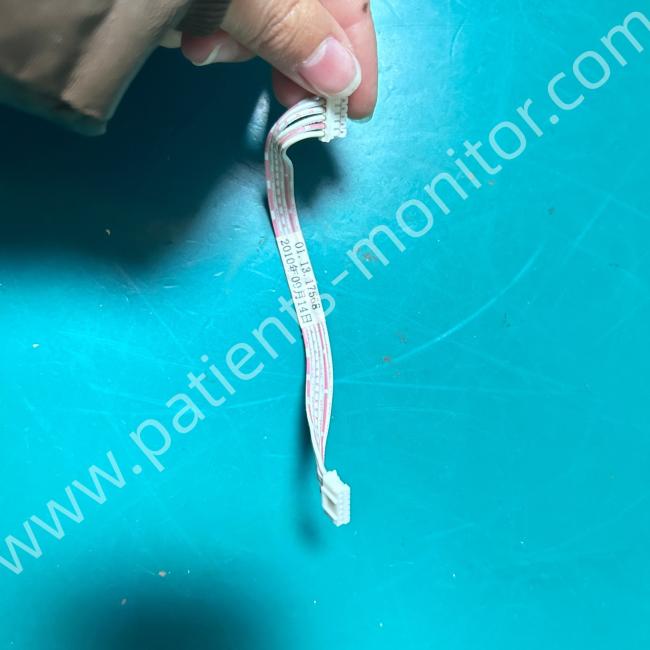

The connection cable between the EDAN Cadence II fetal monitor's motherboard and power board is primarily responsible for power distribution and signal transmission. This cable harness is a combination of power and signal lines. The power lines, which deliver the main power supply, are thicker and can withstand the high current surges during printing. The signal lines, which handle low-power logic communication, are thinner and typically use twisted wire or shielded designs to prevent electromagnetic pulses from the power lines from interfering with the motherboard's power status readings. The interfaces use pluggable connectors with spring-loaded clips. This structure prevents terminals from gradually loosening due to vibration and causing poor contact. The metal pins of the interface terminals are usually gold-plated to enhance oxidation resistance and ensure the stability of even small signal transmissions.

Functions:

- The motherboard regulates the DC voltage output from the power board in real time via the connection cable. During periods of high load, such as printer startup, it sends a command to the power board to enter high-speed response mode, preventing power loss.

- The motherboard obtains stable DC power from the power board via the connection cable, physically isolated by a transformer, and then distributes it to peripherals through the secondary voltage regulation circuitry on the motherboard.

- The signal lines in the wiring harness handle the AC/DC switching logic. When the power cord is accidentally unplugged or there is a power outage, the power board senses the power failure and instantly feeds it back to the motherboard through this wiring harness. The motherboard immediately executes the interrupt program, smoothly switches to battery power mode, and issues an audible and visual alarm.

Warranty

Warranty period: 90 days

We provide warranty for both new and used equipment. Different equipment has different warranty periods. You can contact us to check the warranty details.

Delivery Details

Express delivery method: DHL, FedEx, UPS, etc.

Once payment is completed, we will immediately deliver the product to you quickly and safely. And the delivery date is about 3-5 working days, the shipping cost depends on your country and region.

If your delivery date is longer than expected, or you want to know the shipping details, you can contact us at any time.

Quality

Whether it is new equipment or old equipment, our engineers will conduct a comprehensive inspection before arranging delivery, and we have a 3 month warranty period, so you can purchase with confidence.

Warning

1. It's must use the correct electrical outlet to avoid damage or malfunction.

2. Try to avoid long-term storage, especially in high temperature and high humidity environments.

3. Do not use high-temperature, high-pressure vapour or ionizing radiation as disinfection methods.

4. Do not use chloric disinfectant such as chloride, sodium hypochlorite etc.

5. Please keep it away from water and fire.

FAQ

1.Will lost packages be replaced free of charge?

After confirming the loss of a package, we will immediately arrange for a brand new replacement free of charge, so as not to delay your use.

2.Are the tariff standards the same in different countries?

No, tariff policies, tax rates, and tax-free allowances vary from country to country. We can provide reference suggestions.

3.Can you pay customs duties on my behalf?

Under DDP terms, we can pay customs duties on your behalf; under DDU terms, the buyer must pay.

4.Can overdue delivery be considered a lost package?

If the shipment has not arrived after twice the normal delivery time and there is no further information, the lost shipment investigation and claims process can be initiated.

5.Does the transportation of medical accessories require special declaration?

Declare according to medical device regulations, ensuring that the documents and product name are consistent for smoother customs clearance.

We also provide other medical equipment and accessories. If you have any other needs or any questions about this product, please feel free to contact us, we will reply you as soon as possible.
