Carewell ECG-1112 ECG Machine Keypad Wiring Flexible Flat Ribbon Cable Assembly

• Product Description

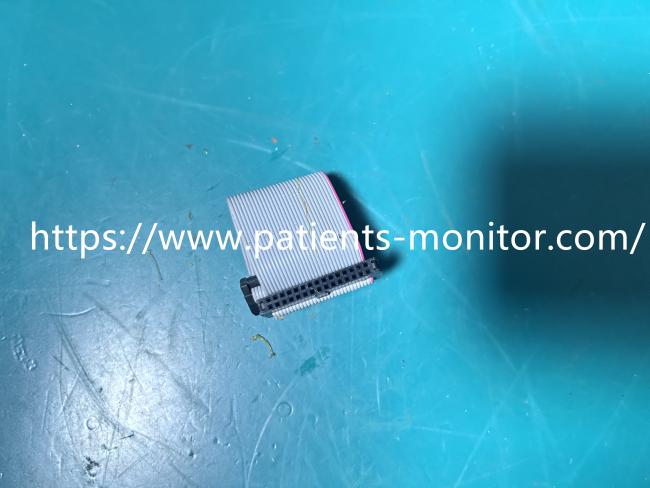

This Carewell ECG-1112 ECG Machine Keypad Wiring is a precision replacement part specifically designed for the Carewell ECG-1112 model. It primarily consists of a highly flexible flat ribbon cable and durable connector interfaces, responsible for transmitting key signals from the operation panel to the main board accurately. For biomedical equipment technicians, this is the ideal solution for fixing common issues such as unresponsive keys, poor contact, or machine startup failures. Crafted with high-quality workmanship and gold-plated contacts to prevent oxidation, it ensures stable signal transmission, making it an essential spare part for hospital and clinic ECG machine maintenance.

• Product Specifications

• The function of the product

The core function of this component is to serve as a "signal bridge," connecting the user interface (keypad) to the machine's brain (main board). When a doctor presses keys like "Start," "Stop," or "Lead Switch," electrical signals are transmitted to the processor via this ribbon cable, thereby controlling the ECG machine's recording and analysis functions. If the cable is damaged, the machine will fail to receive commands and become inoperable.

• Use tips

• 1. This product is a precision electronic component; please avoid storing it in humid or strong magnetic field environments.
•
• 2. Do not fold the ribbon cable more than 90 degrees to avoid damaging internal circuits.
•
• 3. Please confirm the model match before installation, as pin definitions may vary across different models.
