Sunray SRF618B Fetal Monitor High Voltage Board 12112.02.2-051011-014 Spare Part

Sunray SRF618B Fetal Monitor High Voltage Board 12112.02.2-051011-014 Spare Part

► Brief Description

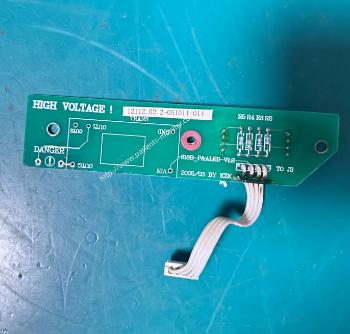

The Fetal Monitor High Voltage Board, part number 12112.02.2-051011-014, is green, made of metal, and includes a connecting cable. It is specifically designed to power the TFT LCD screen of the SRF618B fetal monitor, providing crucial power support for the stable operation of the entire obstetric monitoring system. This high-voltage board performs the circuit function of low-voltage DC to high-voltage backlight inverter, accurately converting the low-voltage input from the main power module to illuminate the CCFL cold cathode fluorescent lamp or LED backlight strip on the back of the display screen. This allows the fetal heart rate waveform, uterine contraction pressure curve, and various numerical information to be clearly and continuously displayed on the TFT color screen. If the high-voltage board experiences unstable or malfunctioning output, it can cause screen flickering, interfering with medical staff's ability to capture abnormal indicators, or even completely black out the screen, interrupting the entire monitoring process. This high-voltage board design achieves stable backlight inverter output, meeting the visual observation needs of continuous 24/7 monitoring in the delivery room.

► Specifications

►Detailed Photos

►Features:

1.This high-voltage board is a genuine Sunray original accessory, strictly adhering to original medical device standards in both materials and manufacturing processes.

2.Onboard components utilize industrial-grade, high-performance electronic components, with compact and neat wiring that perfectly fits the internal installation space of the SRF618B device.

3.The pin definitions of the interfaces are fully compatible with the original circuitry, requiring no adjustments or additional wiring modifications during repair or replacement; it's plug-and-play.

4.Its excellent heat dissipation design ensures controllable operating temperature rise and strong resistance to aging and moisture.

►Installation Steps

1. Disconnect all power to the device.

Removal and Preparation (Old High-Voltage Board)

2. Remove all screws from the back cover of the device. Carefully separate the back cover and locate the high-voltage board. Disconnect all cables and the grounding wire from the high-voltage board. Then remove the screws securing the high-voltage board and remove the old board.

3. Place the new high-voltage board inside the device, ensuring all mounting holes are aligned. Secure it firmly with screws. Pay attention to the screw specifications when securing.

Strictly follow the steps before installation, reconnecting all cables one by one. Pay particular attention to the motherboard connections and printhead control cables to ensure they are secure. When connecting, pay attention to the keying design of the interfaces to ensure correct insertion and avoid forcing them in.

4. Assembly and Testing

Before complete assembly, temporarily connect the power and quickly test the screen display to verify successful installation.

If you want to explore more details about the Sunray SRF618B Fetal Monitor High Voltage Board 12112.02.2-051011-014 , please let me know, looking forward to your early inquiry.
