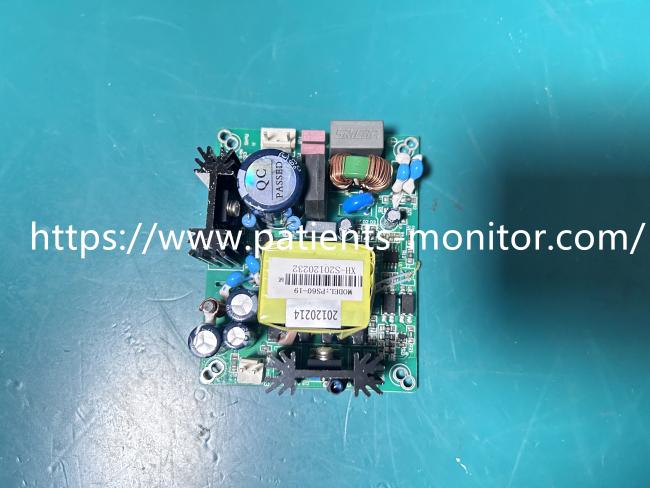

Carewell ECG-1112 ECG Machine Power Board E504278 PS60-19 Diagnostic Equipment Part

• Product Description

This component is a precision electronic part and should only be replaced by qualified medical equipment maintenance engineers. Ensure the main power of the device is disconnected before operation, and use an anti-static wrist strap to prevent static damage to chips. Verify the ribbon cable orientation during installation and avoid forceful plugging or unplugging.

• Product Specifications

• The function of the product

As the energy supply center of the ECG machine, it converts unstable mains or battery voltage into stable low-voltage DC power, directly supplying the mainboard CPU, display screen, and signal acquisition module. It is key to ensuring normal device startup and waveform display.

Use tips

Do not operate in humid environments; if you see burn marks or bulging capacitors on the board, stop using it immediately and replace it; dispose of waste electronic components according to local environmental regulations.

This component is a precision electronic part and should only be replaced by qualified medical equipment maintenance engineers. Ensure the main power of the device is disconnected before operation, and use an anti-static wrist strap to prevent static damage to chips. Verify the ribbon cable orientation during installation and avoid forceful plugging or unplugging.
