Philipph DreamStation AVAPS30 Multi-Function Ventilator Used in Good Working Medical Device

Philipph DreamStation AVAPS30 Multi-Function Ventilator Used in Good Working Medical Device

► Brief Description

The DreamStation AVAPS30 is a portable, electrically powered ventilator designed to provide long-term, stable alveolar ventilation support for patients who do not require complex intensive care. It delivers gas to the patient's lungs using positive pressure via either non-invasive (mask) or invasive (artificial airway) methods. The device integrates comprehensive control and alarm systems and can be equipped with a built-in humidifier to ensure safe and comfortable therapy. It has received registration approval from the National Medical Products Administration (NMPA) of China. Ventilation pressure ranges from 4 to 30 cm H₂O for IPAP and 4 to 25 cm H₂O for EPAP; target tidal volume is 200 to 1500 ml per breath; respiratory rate is 1 to 30 breaths per minute; and pressure rise time is adjustable across levels 1 to 6. Weighing 1.33 kg (excluding the humidifier) ​​and measuring 15.7*19.3*8.4 cm, the device is highly compact and easy to carry or transport.

► Specifications

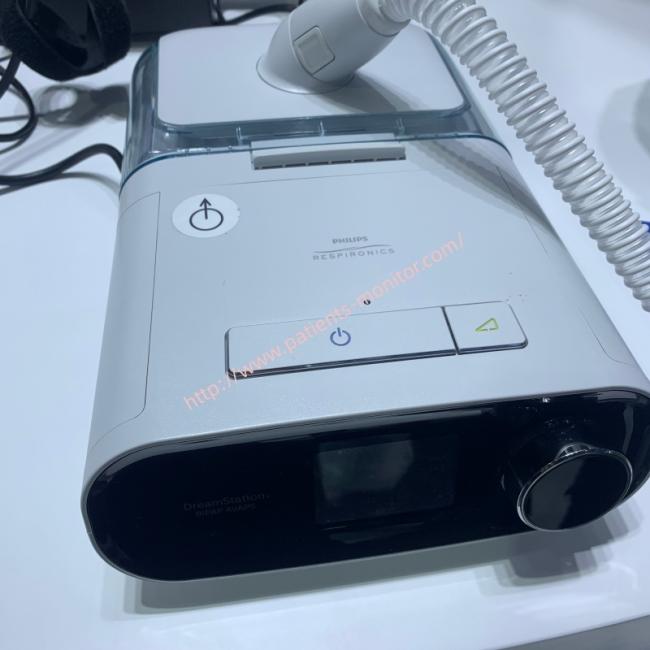

►Detailed Photos

►Clinical Applications and Key Advantages

1.Integrating the AVAPS function with bilevel pressure ventilation yields beneficial physiological improvements and reduces transcutaneous partial pressure of carbon dioxide (PtcCO2) more effectively than standard BPV-S/T therapy alone.

2.Its stylish, compact design allows for easy placement on a bedside table. The front-facing color LCD screen and intuitive rotary control knob enable patients to operate the device and view data conveniently, whether sitting up or lying down. The integrated humidifier water chamber also facilitates easy cleaning.

3.Built-in Bluetooth and optional Wi-Fi or cellular modules allow clinicians to remotely access data on usage duration, compliance, and treatment efficacy, enabling true "connected care." This significantly enhances the efficiency of chronic disease management, making it particularly suitable for patients undergoing home-based therapy that requires long-term follow-up.

►Basic Operating Steps

1. Install the ultra-fine filter onto the pollen filter, then insert the assembly into the device.

If using a humidifier, slide the cleaned humidifier onto the main unit until it locks securely in place.

Connect the mask and tubing, then connect the power adapter to the device.

2. Once the device is powered on, press the therapy button; the ventilator will begin delivering airflow, allowing you to verify that the device is operating correctly.

Entering "Clinical Settings" / "Provider Mode"

Enter this mode if you need to adjust therapy parameters.

3. After powering on the device, press and hold both the control dial and the ramp button simultaneously for at least 5 seconds to enter Provider Mode.

In this mode, you can navigate and configure settings by rotating and pressing the dial:

Rotate the dial: Browse menu options.

Press the dial: Select the currently highlighted option.

Rotate and press again: Adjust parameter values and confirm/save changes.

Thank you for your attention, if you want to more details about the Philipph DreamStation AVAPS30 Multi-Function Ventilator, please feel free to contact me, looking forward to hearing from you.
