Philipph Efficia CM10 Patient Monitor used with good medical device

Philipph Efficia CM10 Patient Monitor used with good

► Brief Description

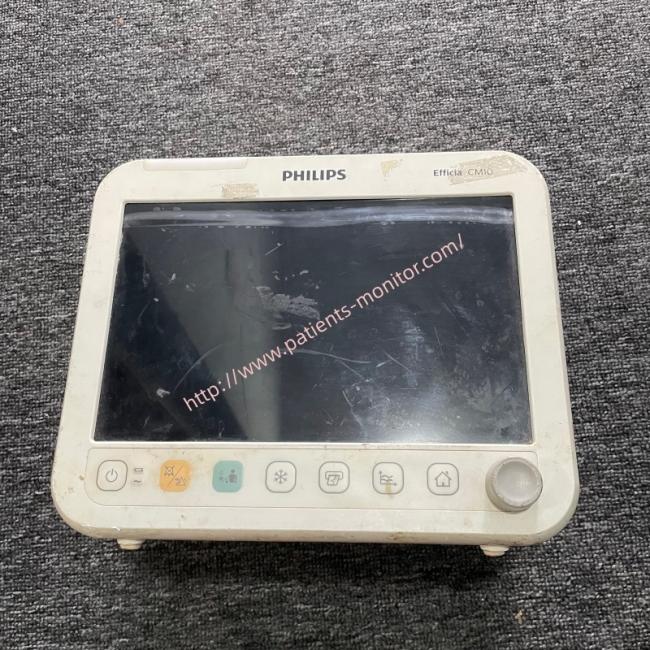

The Efficia CM10 is a feature-rich, portable bedside monitor that provides standard monitoring parameters such as ECG, SpO2, respiration, NBP, and temperature. It features a 10.1-inch high-definition LCD screen with a 1280×800 resolution and a 16:10 widescreen aspect ratio, allowing for the simultaneous display of more waveforms and a more user-friendly layout. The screen supports ±15° rotation, facilitating viewing and operation by medical staff from various angles. Powered by a high-performance processor, the device maintains CPU usage below 80% even when all modules are running simultaneously, effectively preventing system freezes. Its built-in smart lithium battery includes an embedded chip that accurately reports battery capacity and usage status. Weighing less than 3.3 kg and featuring a concealed handle design, the monitor combines durability with portability.

► Specifications

►Detailed Photos

►Key Features

1.Most routine operations can be completed in three steps or fewer, significantly reducing the learning curve for medical staff. The device supports department-specific presets—including three default and three custom configurations—allowing for the rapid replication of monitoring settings and enhancing workflow efficiency.

2.Regarding alarm management, the CM10 provides visual indicators categorizing alarm events into high, medium, and low priority levels. Medical staff can review alarm events and access full-disclosure waveforms and measurement data within 20 seconds. The device supports data transmission to Hospital Information Systems (HIS) via Ethernet in HL7 format and offers plug-and-play connectivity to central monitoring systems.

3.The device features internal storage capable of retaining over 20 waveforms and 48 hours of full-disclosure data, while also supporting 10 days of trend review. The full-disclosure function allows for the storage of all monitoring parameters and waveforms for each patient via an SD card; the system automatically overwrites the oldest data with new data once the 48-hour limit is exceeded. This capability provides a robust data foundation for clinical retrospective analysis and medical decision-making.

►CM10 Patient Monitor Operation

1.Press and hold the "Power" button for at least one second; the system will restart and enter operating mode.

Make selections by simply tapping the buttons on the screen.

2.Once the appropriate sensors are connected, the following settings can be configured:

Select Patient Category: Before starting, select the appropriate category (Adult, Pediatric, or Neonatal) based on the patient's condition to ensure accurate alarm limits and measurement ranges.

ECG Monitoring: Use the on-screen menu to configure lead placement, adjust alarm upper and lower limits, and enable or disable ECG alarms.

NIBP Monitoring: Configure various measurement modes, such as manual, automatic, and sequence.

SpO2 Monitoring: Configure settings and adjust alarms via the SpO2 menu.

FAQ:

Q1:Could you provide a video showing the patient monitor in normal working?

A1:Sure,we will provide a test video for your confirmation before shipping, so don’t worry.

Q2: What to do if there is a quality problem with the product?

A2:It has 90 days, during the warranty period, we can replace it for you or give you a full refund.

Q3:It's original ?

A3:Yes, it is a genuine factory-made product from warehouse stock, and all functions are in good working order.

If you wantmore details about the Efficia CM10 Patient Monitor, please contact me freely.I’ll reply you immediately, Looking forward to receiving your inquiry.
